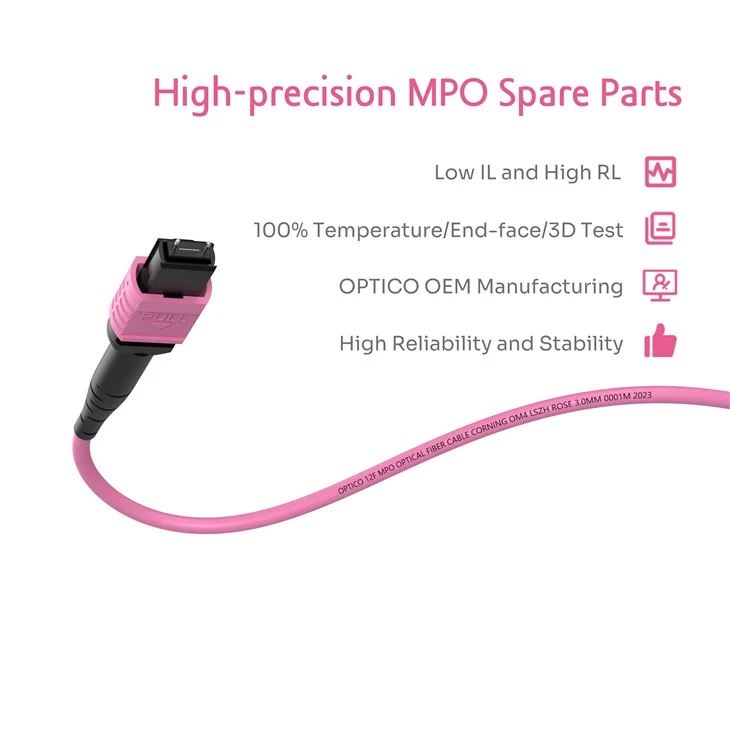

Data Center 12F MPO MTP Jumper
MPO/MTP jumper,also called MPO/MTP patchcord,is wildly used in data centres.
This model consists of OS2 fiber cable and 12F MPO/MTP connectors at both end.
Color and length can be customised. The advantage of MPO/MTP jumper is easy installation and maintenance.
why MPO/MTP solutions surge
Why MPO/MTP solutions surge?
1. Traditional LC cabling systems are no longer able to meet the requirements of high transmission rates and densities in large data centers, so some IT designers have turned to MPO/MTP cabling solutions. This wiring scheme is different from LC wiring and can perfectly adapt to the requirements of high-speed, high-density, and structural wiring.
2. 40G/100G/120G is already a common occurrence and an economical and reliable choice for upgrading 10G networks to higher speed Ethernet. Meanwhile, uplink connections between devices at different speeds can also be achieved through MTP cabling systems, such as 25G-100G, 50G-200G/400G, 100G-400G, and 200G-400G.
3. Example: If 144 optical fibers need to be terminated and tested, network installation personnel may take a day, but by using MTP connectors, the time required for 12 or 24 optical fibers with tool buckles will be greatly reduced. If a plug and play pre-installed cable is used, the entire installation process will be more time-saving and worry free, and the maintenance costs in the later stage will also be lower.
optico mPO/MTP jumper strength
OPTICO is Focusing on the research and manufacturing of optical products, well complying with international standards such as IEC and RoHS, and our MPO/MTP fiber optic connectors can achieve ultra-low losses. The loss of connector single-mode 12 core is reduced to below 0.25dB, which is 28% lower than the industry's standard of 0.35dB; The loss of SM single-mode 24 core is reduced to 0.35dB, far below the typical loss of MPO connectors provided by industry standards, providing high-quality MPO fiber optic connectors for the construction of upcoming 400G 800G networks in data centers.
Products Datasheet
| Physical Properties | Parameter |
| Fiber Count | 12 Fibers |
| Fiber Mode |
OM3, OM4, OS2 |
| Connector Type | MTP Female/Male; MPO Female/Male |
| Polarity | Type A/B/C |
| Cable Jacket | PVC/LSZH/OFNP |
| Jacket Colour | Yellow/Aqua/Magenta/Lime Green |
| Cable Diameter(mm) | 3.0 |
| Minimum Bend Radius | 7.5 |
| Fiber and Boot Length | Customizable |
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.7 | ≤0.35 | ≤0.25 | |
| Return Loss(dB) | ≥35 | ||
| Wavelength(nm) | 1310/1550 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70N | 220N | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
MPO/MTP application in Data Centre
