MPO MTP 24 Patch Cable Fanout 2x12F Multimode

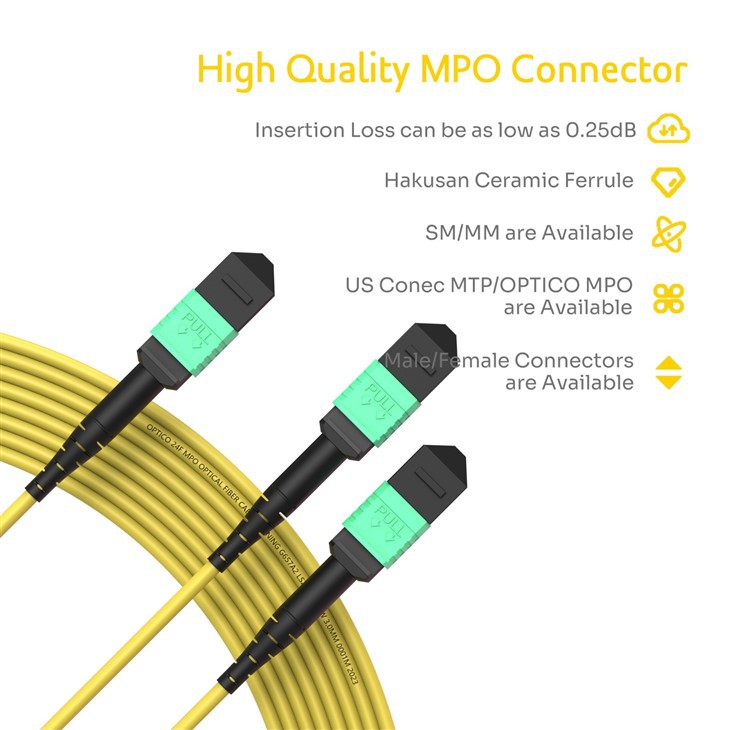

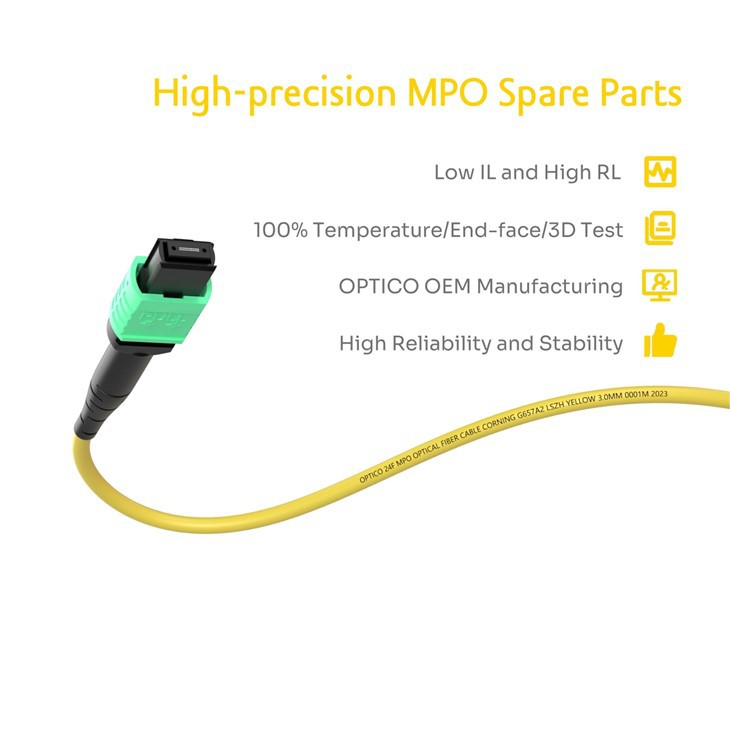

MPO 24 patch cable breakout to 2 x12F distribution cable. Connectors are high-performance MPO or US Conec MTP.

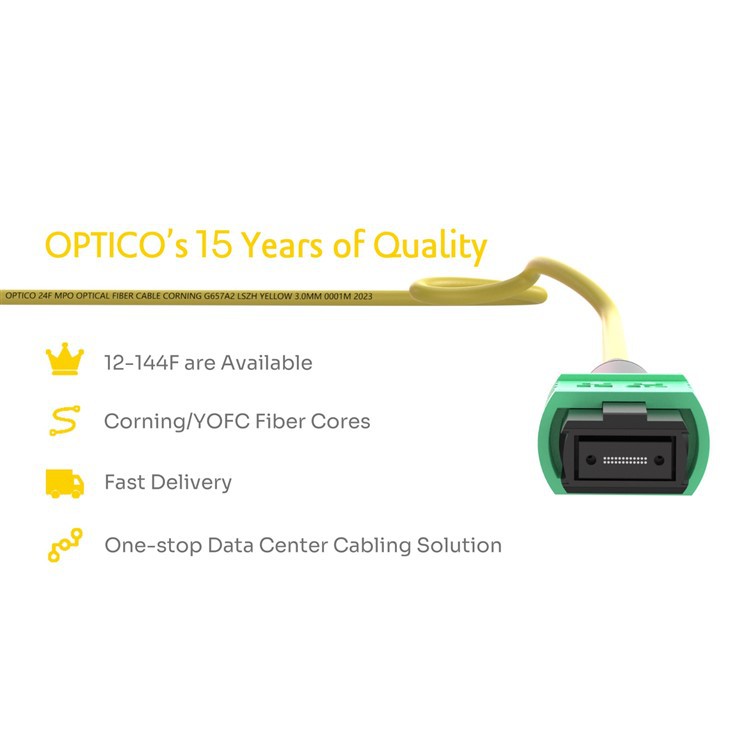

Corning or YOFC fiber, with ultra low IL 0.25db .
Compact design for high-density connections in data centres.
MPO solution For data centers
Data centers require efficient and high-capacity cabling solutions to manage large volumes of data, MPO high density cables are well-suited for this purpose due to their ability to support multiple data channels in a single connector.
Currently MPO 24 breakout patch cords are widely used. these devices are usually required between the core switching equipment and the switching equipments in various network cabinets. Optic cables with MTP MPO connectors are the optimal choice because of this reliable optical performance and high-density design.
MPO 24 patch cable features
1. MPO 24 cores connector can effectively save card and rack space.
2. Meeting the 40G-BASE and 100G-BASE standards for flexible network upgrade.
3. Push/pull tab connectors are easily accessible in high-density data center applications.
4. More stable and reliable, lower installation and matainance cost.
Product specifications
Product Specifications
| Physical Properties | Parameter |
| Fiber Count | 24 Fibers |
| Fiber Mode |
OM3 OM4 OM5 |
| Connector Type | US Conec MTP / OPTICO MPO, Male/Female |
| Polarity | Type A/B/C |

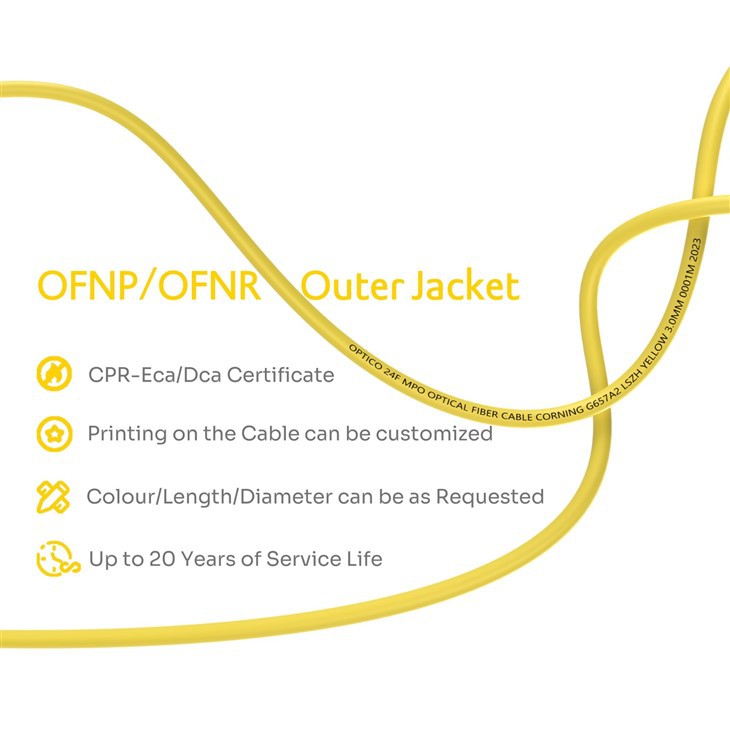

| Cable Jacket | PVC/LSZH/OFNP |
| Jacket Colour | Green / purple |
| Cable Diameter(mm) | 3.0 |
| Minimum Bend Radius | 7.5 |
| Fiber and Boot Length | Customizable |
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.5 | ≤0.35 | ≤0.25 | |
| Return Loss(dB) | ≥35 | ||
| Wavelength(nm) | 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70 | 220 | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
