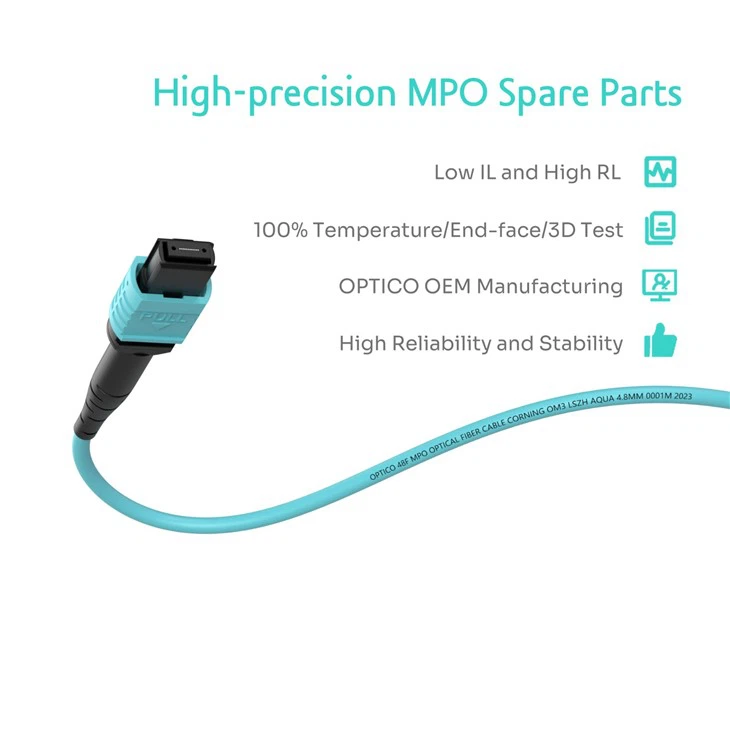

MPO MTP 48F Multimode Fanout Jumper Cable
The 48F multimode jumper cable,4x12 fibers breakout input and to 4x12 breakout output. Connectors can be high-performance MPO or US Conec MTP.
Fiber cores are Corning or YOFC with low loss and attenuation, with good reliability and stability.
Designed for high-density cabling in data centers.
mPO MTP solution to data centers
In data center fiber structured cabling systems, MPO fiber optic patch cords are widely used. MPO MTP 48F Multimode Fanout Jumper Cable are usually required between the core switching equipment and the switching equipment in various network cabinets, so using multi-core MTP fiber optic connection series products is the optimal fiber solution meeting the high data rate applications.
MPO MTP patch cable features
1. MTP connector can effectively save pannel and rack space.
2. Meeting the 40G-BASE and 100G-BASE standards for flexible network upgrade.
3. Push/pull tab connectors are easily accessible in high-density data center applications.
4. More stable and reliable, lower matainance cost.
Product specifications
48 F Fan-out MPO MTP patch cable
| Physical Properties | Parameter |
| Fiber Count | 48 cores |
| Fiber Mode |
OM3 OM4 OM5 |
| Connector Type | US Conec MTP/OPTICO MPO Male/Female |
| Polarity | Type A/B/C |

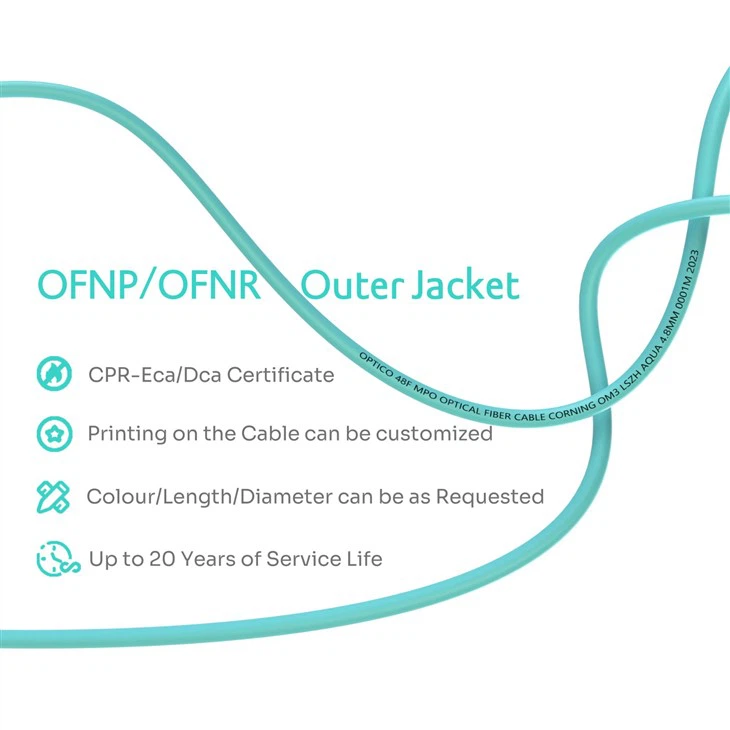

| Cable Jacket | PVC/LSZH/OFNP |
| Jacket Colour | Aqua or customized |
| Cable Diameter(mm) | 2.0 3.0 |
| Operating temperature | -20-75℃ |
| Fiber and Boot Length | Customizable |
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.5 | ≤0.35 | ≤0.25 | |
| Return Loss(dB) | ≥35 | ||
| Wavelength(nm) | 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70 | 220 | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
