Flexible Ribbon Fiber Cable
Using 200um fiber, ultra-High-Density from 288F to 3456 F
Small diameter for space-limited pathways
Ideal for MMC and CPO solutions
Flexible Ribbon Fiber Cable
Products Description
As trends like virtualization and convergence bring increased traffic to 800G/1.6T data centers, cable with high fiber counts is needed to support growing bandwidth. therefore, flexible ribbon fiber cable become an ideal option, providing the highest connectivity density to new-gen data centers. With multiple flexible ribbon fiber groups inside, it offers 288F to 3456F.

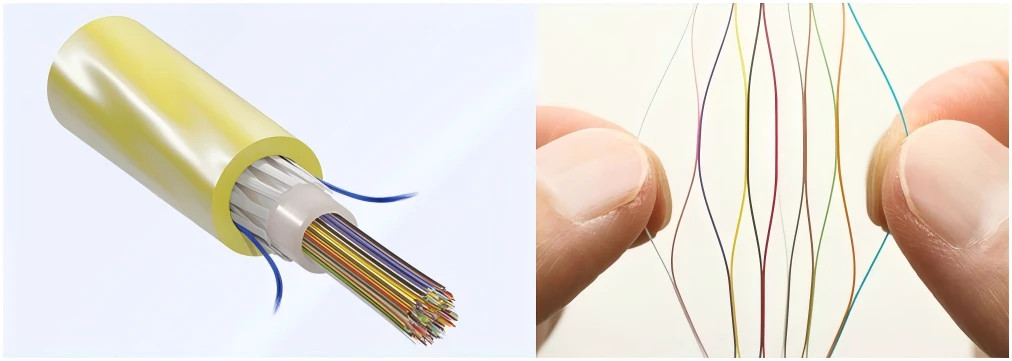

Structurally, fibers within rollable ribbon cables are attached at regularly spaced points rather than continuously along their length, making the ribbon more flexible/rollable than conventional ribbon cable. Its small OD and superb flexibility make it easier and faster to handle, creating installation possibilities in narrow pathways. The construction is gel-free and all-dielectric, with peripheral FRP for strength and dry water-blocking throughout. For hyperscale and AI-infrastructure backbones, that means fewer duct pulls to hit the fibre counts these networks now need, and faster deployment.
Representing flexible ribbon examples are ASR(any-shape ribbon) of YOFC, FreeformRibbon of Sumitomo, FlexRibbon of Prysmian,RocketRibbon of Corning.
Key features
--Easier Cable Pulling: Superb flexibility makes it ideal for narrow pathways and small conduits
--Faster Deployment: Eliminate the sorting and ribbonization process
--Reduced Cable Diameter: Up to 60% reduction in cable diameter
--Compatible with existing 250 µm splicer ecosystem, along with new 200 µm splicer technology
Product Specifications
| Fiber type | SM G657A2 |
| Working wavelength (nm) | 1310nm 1550nm |
| Fiber counts | 288F ~3456F |
| Fiber diameter | 200um or 190um(Corning) |
| Cable diamater | 11.3mm(288F) ~ 26.5mm(3456F) |
| Max attenuation @1310nm (dB) | ≤0.40dB |
| Max attenuation @1550nm (dB) | ≤0.30dB |
| Reinforcement in sheath | FRP, aramid yarn |
| Flame rating | OFNR / LSZH |
| Min bending diameter | Static 15D, dynamic 20D |
| Outer sheath color | Black |
| Operating temperature (℃) | -20 to 70℃ |
| Storage temperature (℃) | -40 to 70℃ |
| Fiber compliance | ITU-T G657a2 |
Application Scenarios
• Ultra high-density structured cabling
• Fiber flex shuffle box
• New-gen MMC and CPO technology
FAQ
Q: How does flexible ribbon cable save space?
A: Its compact and flexible design allows for a much higher fiber density. It can be rolled, folded, or routed in tight spaces without sacrificing performance
Q: Is it compatible with the 250um ecosystem?
A: 200 µm pitched ribbon allows for both 200 µm and 250 µm splicer compatibility, Flexible ribbon structure allows for easy routing in splice trays and housings
Q: what is the number of fiber counts for the flexible ribbon fiber cable?
A: We support custom from 288F to 3456F, best choice for Ultra-High-Density application.
