Rollable Ribbon Fiber Cable
Ultra-High-Density in a Flexible Design
Using 200um fiber, custom from 288F to 3456 F
Small diameter for space-limited pathways, roll and bend easily
Rollable Ribbon Fiber Cable
Products Description

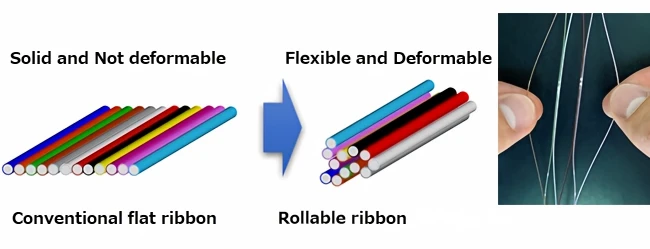

Rollable ribbon fiber cable provides the highest connectivity density to new-gen data centers. With multiple flexible ribbon fiber groups inside, it offers 288F to 3456F, meeting the upcoming demand for NPO and CPO solutions in datacom. Structurally, fibers within rollable ribbon cables are attached at regularly spaced points rather than continuously along their length, making the ribbon more flexible/rollable than conventional ribbon cable.
Rollable ribbon fiber, also called flexible ribbon fiber, uses 200um singlemode fiber, not the conventional 250um. It is conbined by intermittent bonds between the fibers, creating a more flexible unit that permits mass-fusion splicing and effectively addresses the shortcomings of the earlier technology of flat ribbons. Representing rollable ribbon examples are ASR(any-shape ribbon) of YOFC, e-Ribbon of SWCC, FlexRibbon of Prysmian,RocketRibbon of Corning.
Key features
--Lightweight & easy handling
--Rollable ribbon design, roll, bend to any shape
--Using 200um fiber, high fiber counts
--Small diameter for space-limited pathways
Product Specifications
| Fiber type | SM G657A2 |
| Working wavelength (nm) | 1310nm 1550nm |
| Fiber counts | 288F ~3456F |
| Fiber diameter | 200um or 190um(Corning) |
| Cable diamater | 11.3mm(288F) ~ 26.5mm(3456F) |
| Max attenuation @1310nm (dB) | ≤0.40dB |
| Max attenuation @1550nm (dB) | ≤0.30dB |
| Reinforcement in sheath | FRP, aramid yarn |
| Flame rating | OFNR / LSZH |
| Min bending diameter | Static 15D, dynamic 20D |
| Outer sheath color | Black |
| Operating temperature (℃) | -20 to 70℃ |
| Storage temperature (℃) | -40 to 70℃ |
| Fiber compliance | ITU-T G657a2 |
Application Scenarios
• Ultra high-density structured cabling
• Interconnect of AI data centers
• New-gen MMC and CPO technology
FAQ
Q: How does rollable ribbon cable save space?
A: Its compact and flexible design allows for a much higher fiber density. It can be rolled, folded, or routed in tight spaces without sacrificing performance
Q: Can you put connectors directly onto a fiber ribbon?
A: Not single-fiber connectors like LC or SC, multi-fiber MPO/MTP® connectors can be terminated directly onto the ribbon.
Q: what is the number of fiber counts for the rollable ribbon fiber cable?
A: We support custom from 288F to 3456F, best choice for Ultra-High-Density application.
