RFOG And XGS PON Module
RFOG And XGS-PON Module 1.This is the RFOG and XGS-PON composite module recently produced by OPTICO. Each unit is a device with only 3 ports, a COM port, an RFOG port, and an XGS-PON port. As per customer requirement, every 8 units are packaged in an ABS box. 2.OPTICO can provide a full range of...
1.This is the RFOG and XGS-PON composite module recently produced by OPTICO. Each unit is a device with only 3 ports, a COM port, an RFOG port, and an XGS-PON port. As per customer requirement, every 8 units are packaged in an ABS box.
2.OPTICO can provide a full range of WDM devices, in addition to the composite models of RFOG and XGS-PON, XGS-PON and DWDM, CWDM and DWDM have composite models for customization.
3.These modules have high isolation, high stability and reliability, and high flexibility in network construction. They are an excellent choice for network monitoring and network expansion under limited optical fiber resources.
Parameter | Unit | Specifications | |
Operating Wavelength | nm | 1260~1620 | |
PDL | dB | ≤0.2 | |
PMD | ps | ≤0.1 | |
Ripple over passband | dB | ≤0.5 | |
Insertion loss | dB | ≤2.0 | |
GPON | Wavenlength Range | nm | 1294~1326&1540~1565 |
| Insertion loss | dB | ≤1.1 | |
| Isolation@XGS-PON | dB | >30 | |
XGPON | Wavenlength Range | dB | ≥30 |
| Insertion loss | dB | ≤1.3 | |
| Isolation@RFOG | dB | >30 | |
Return loss | dB | >50 | |
Power Handing | mW | 300 | |
Fiber Type | / | 0.9mm G657A1 | |
Pigtail Type | / | G657A1 with black 2.0mm TPU tube | |
Operating Temperature | ℃ | -40~+85 | |
Storage Temperature | ℃ | -40~+85 | |
Packing Dimension | mm | 120*80*18 | |
Connector | / | As request | |
Low insertion loss.
High wavelength accuracy
Extended temperature range
Excellent thermal stability
Extremely small size
24 port ROFG and XGS-PON
ABS pigtailed module
High flexibility
Passive, no electric power required. (MTBF ca. 500 years)
Low insertion loss
Simple to install, requires no configuration or maintenance
ISO 9001 manufacturing facility
ISO9001

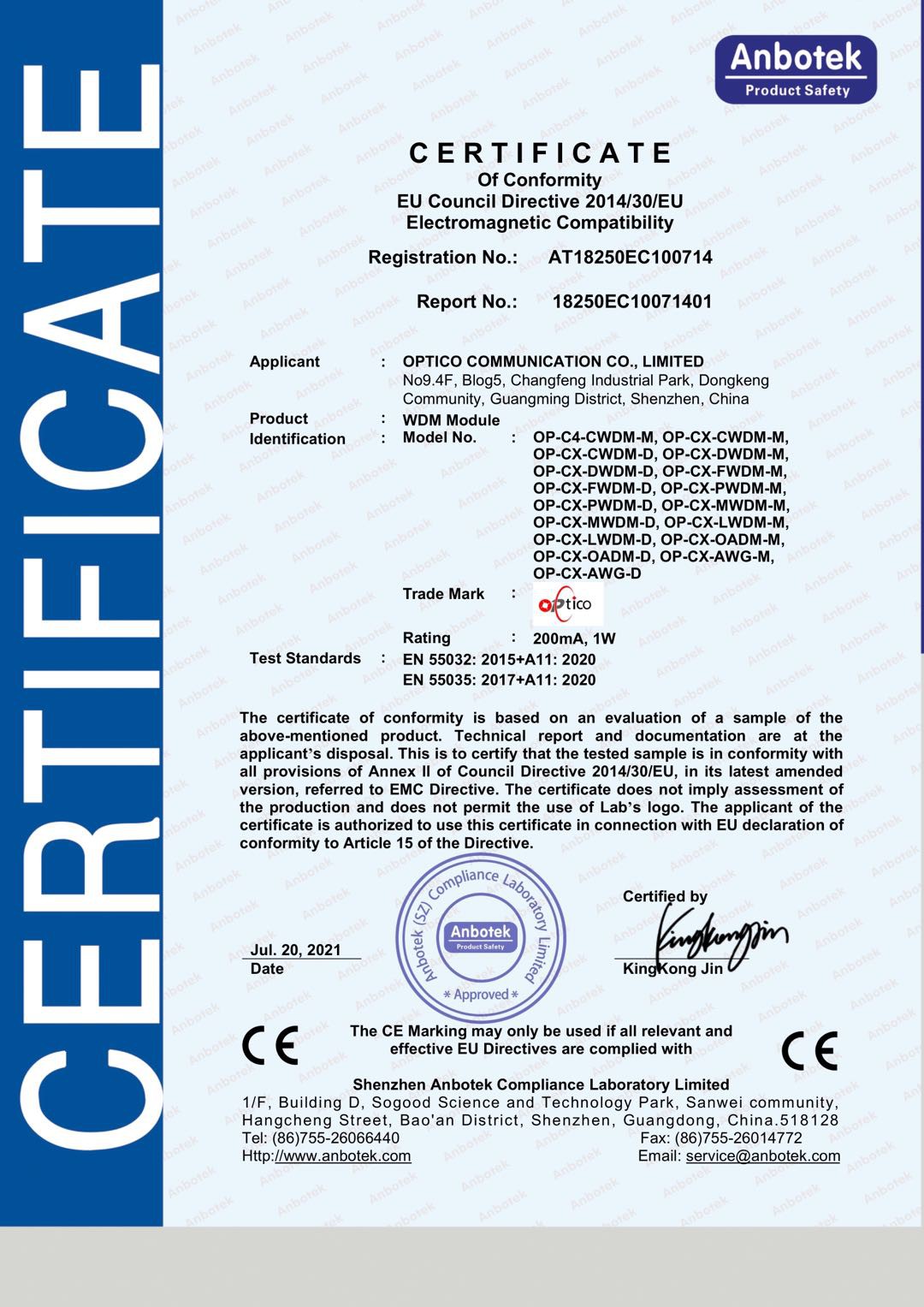

WDM-CE
ROHS
CPR-A2
