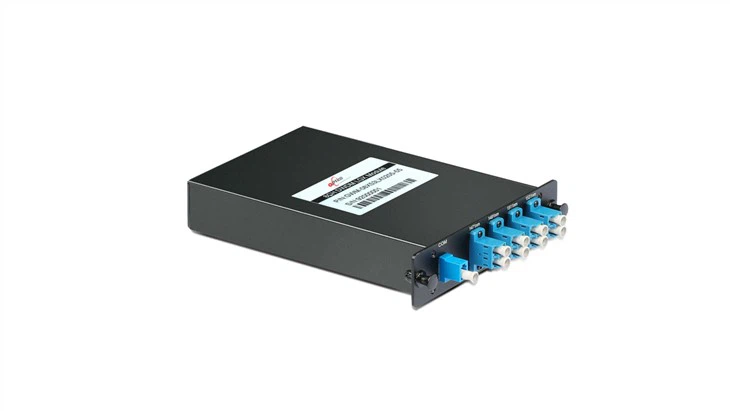

200G 20CH DWDM
200G 20CH DWDM 1.1×2 200G DWDM (Three-Port 200G Dense Wavelength Division Multiplexer) is to use thin film filter (TFT) technology to combine multiple optical signals of different wavelengths in one fiber, or decompose optical signals of different wavelengths. Come, the ITU center wavelength...
Introduction:
Our 200G 20CH DWDM is the latest product from our company, offering high-quality and reliable connectivity solutions for businesses around the world. As a manufacturer located in China, we specialize in producing networking products that meet the demands of a wide range of industries.
Whether you are a telecommunications company, cable operator, or data center operator, our 20CH DWDM products can help you increase your bandwidth capacity and improve your network performance. In this article, we will introduce our 200G 20CH DWDM in detail, outlining its key features, how it functions, and the benefits it can bring to your business.
Features:
Our 200G 20CH DWDM is designed to provide high-speed data transport over long distances. It incorporates 20 dense wavelength division multiplexing (DWDM) channels, each of which can transport up to 10Gbps of data. With a total bandwidth capacity of 200Gbps, our DWDM is perfect for businesses that require high bandwidth connectivity for data-intensive applications.
Our DWDM also features advanced wavelength stability technology, which ensures that each channel operates at a consistent wavelength, even in harsh environments. This technology is particularly useful when multiple DWDM systems are deployed together or when different wavelengths are used for different applications.
Another feature of our 200G 20CH DWDM is its flexible configuration. It can be customized to meet the specific needs of different businesses, allowing you to choose the number of channels you require, the distance you want to cover, and the wavelength range that suits your applications best.
Functionality:
Our 200G 20CH DWDM works by transmitting multiple optical signals over a single optical fiber. Each signal is assigned a unique wavelength, which is then combined with other signals using a multiplexer. At the receiving end of the fiber, the signals are separated using a demultiplexer, and each signal is routed to its intended destination.
DWDM technology is ideal for organizations that need to transmit large amounts of data over long distances. It can provide a cost-effective and scalable solution for businesses that need to upgrade their existing network infrastructure or that are looking to expand their network capacity.
Benefits:
Our 200G 20CH DWDM offers several benefits to businesses that are looking for high-speed, reliable connectivity solutions. Here are a few of the advantages:
1. Increased bandwidth: With a total capacity of 200Gbps, our DWDM can provide an enormous increase in bandwidth capacity compared to traditional fiber optic networks.
2. Reduced costs: DWDM technology can allow businesses to avoid the expense of laying new fiber optic cables, which can be a costly and time-consuming process.
3. Improved performance: Our DWDM can help businesses reduce network latency and improve data transfer rates, ensuring that your network delivers the performance your users demand.
4. Flexibility: Our DWDM is highly customizable, allowing businesses to tailor its configuration to meet their specific needs, whether that's the number of channels, the wavelength range, or the distance it needs to cover.
Conclusion:
Our 200G 20CH DWDM is an excellent choice for businesses looking to improve their network performance, increase their bandwidth capacity, and reduce their costs. With advanced wavelength stability technology, flexible configuration options, and a range of other features, our DWDM is a smart investment for organizations that need to go the distance in today's fast-paced digital economy. Contact us today to learn more about how our 200G 20CH DWDM can benefit your business.
1.1×2 200G DWDM (Three-Port 200G Dense Wavelength Division Multiplexer) is to use thin film filter (TFT) technology to combine multiple optical signals of different wavelengths in one fiber, or decompose optical signals of different wavelengths. Come, the ITU center wavelength spacing is 200G HZ.
2.Optico specializes in R&D and production of 200G 1520-1620nm DWDM DWDM modules for DWDM networks. The product design is based on the filter film (TFF) technology: the center wavelength works in the ITU DWDM 1520-1600nm wavelength range according to the channel interval of 100Ghz/200Ghz.
| Parameters | DWDM-20CH | |
| Operating Wavelength(nm) | 1525~1565 | |
| Center Wavelength | ITU Grid(C22/C24~C60) | |
| Center Wavelength Accuracy（nm） | +/-0.1 | |
| Pass band@0.5dB（nm） | +/-0.25 | |
| Channel space（nm) | 1.6 | |
| Port Insertion loss(dB) | ＜3.5 | |
| Isolation（dB） | Adjacent | ＞30 |
| Non-adjacent | ＞40 | |
| PDL（dB） | ＜0.2 | |
| RL（dB) | ＞40 | |
| Directivity（dB） | ＞50 | |
| Power（mw） | ＜300 | |
| Ripple（dB） | ＜0.5 | |
| Fiber type | G657A1 with 0.9mm loose tube | |
| Fiber length（m) | 0.5+/-0.05 | |
| Connector | LC/UPC | |
| Operating temperature(°C） | -5~+75 | |
| Storage temperature（°C） | -40~+85 | |
| Housing（mm） | 120*80*18 | |
⚫ Low Insertion loss and low PDL
⚫ High channel Isolation
⚫ Good channel-to-channel uniformity
⚫ High Reliability and Stability
⚫ Telcordia Compliant
⚫ RoHS Compliant
⚫ Broadband networks
⚫ ROADM
⚫ CATV system
⚫ DWDM System
ISO
CE
ROHS
CPR
Why choose us?
- We offer customized solutions for customers with unique requirements.
- Our purpose is '100% customer fulfillment by our product excellent, price & our group service' and enjoy a superb track record amid clientele.
- Our customer service team is available to answer any questions you may have about our products and services.
- The company has established a complete quality assurance system and passed the international quality system certification, ensuring the leading position of its products in the industry.
- We believe that our products and services are among the best in the industry and are committed to continuous improvement.
- We believe that only based on one's own duty, diligence and dedication, can we continue to progress and develop and create a more exciting life.
- Our products are designed to be easy to install and maintain, saving our customers time and money.
- Our company adheres to the principle of "integrity-based, win-win cooperation" and sincerely cooperates with our customers, and has won a good reputation among the customer base. Our engineers will provide you with 200G 20CH DWDM with suitable models, and we can also process and customize special products for you according to your needs. Warranty service and repair service can provide you with long-lasting protection.
- Our products are designed to be compatible with a variety of network equipment, making them versatile and flexible.
- We advocate practicality, diligence and loyalty, emphasize execution and self-discipline, and always maintain the pursuit of perfect process and results.
