40/100Gb/s 100m QSFP28 Transceiver

This is a Four-Channel,Pluggable, LC Duplex, Fiber-Optic QSFP+ Transceiver for 100 Gigabit Ethernet Applications.

The transceiver is a high performance module for short-range duplex data communication and interconnect applications.

It integrates four electrical data lanes in each direction into transmission over a single LC duplex fiber optic cable.

Each electrical lane operates at 25.78125 Gbps and conforms to the 100GE XLPPI interface.

The transceiver internally multiplexes an XLPPI 4x25G interface into two 50Gb/s electrical channels, transmitting and receiving each optically over one simplex LC fiber using bi-directional optics. This results in an aggregate bandwidth of 100Gbps into a duplex LC cable. This allows reuse of the installed LC duplex cabling infrastructure for 100GbE application. Link distances up to 70 m using OM3 and 100m using OM4 optical fiber are supported. These modules are de- signed to operate over multimode fiber systems using a nominal wavelength of 850nm on one end and 900nm on the other end. The electrical interface uses a 38 contact QSFP28 type edge connector. The optical interface uses a conventional LC duplex connector.

Features:

·Compliant to the 100GbE XLPPI electrical specification per IEEE 802.3bm

·Compliant to QSFP28 SFF-8636 Specification

·Aggregate bandwidth of > 100Gbps

·Dual wavelength VCSEL bi-directional optical interface, PAM4 2 × 50-Gb/s 850 nm/900 nm

·QSFP28 MSA compliant

·Capable of over 70m transmission on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF

·Single +3.3V power supply operating

·With digital diagnostic functions

·Temperature range 0°C to 70°C

·RoHS Compliant Part

·Utilizes a standard LC duplex fiber cable allowing reuse of existing cable infrastructure

·Support 40G/100Gbps

Applications:

-100 Gigabit Ethernet interconnects

-Datacom/Telecom switch & router connections

-Data aggregation and backplane applications

-Proprietary protocol and density applications

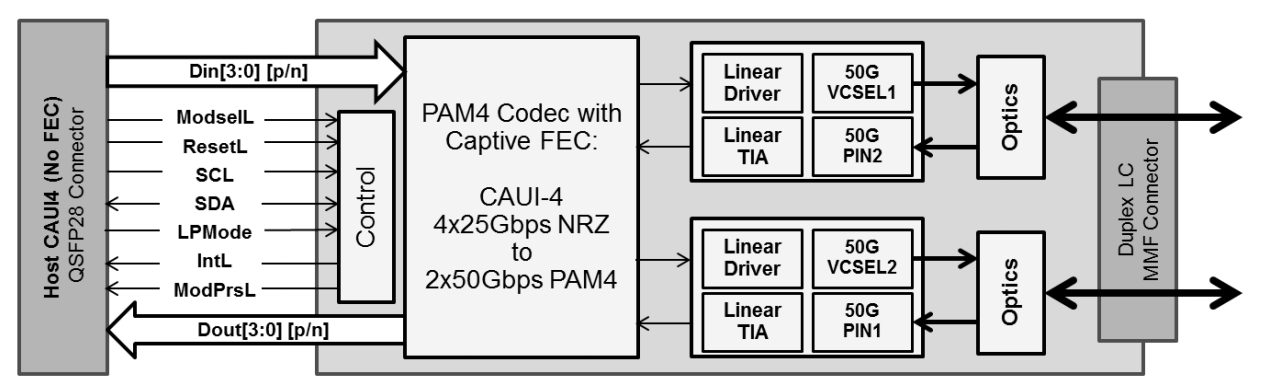

Transceiver Block Diagram

Absolute Maximum Ratings

Recommended Operating Environment:

Optical Parameters(TOP = 0 to 70 °C, VCC = 3.0 to 3.6 Volts)
