12f 24f Fibers Om3 Om4 Outdoor Waterproof IP67 Odva MPO to MPO Patch Cord

Our mission is to provide high-quality products and services to the majority of users at the most reasonable price, and make our own contribution to the world's 2x64 Mini PLC Splitter, 1x16 LGX PLC Splitter, 1x32 1U Rack Mount PLC Splitter industry. Formulating a clear corporate strategic goal is an important guarantee for unifying the thoughts and actions of all employees. We constantly listen to customer needs, continue to innovate, and strive to provide customers with high value-added and professional products, while offering customers with solutions that meet their actual needs.

24F MTP OM3 Patchcord

OPTICO 24F OM3 Patchcord uses unique Fibre Channel for termination to meet 40G/100G Ethernet and supports high-bandwidth applications. It is a high-density solution that occupies the smallest physical space. It has strong MPO/MTP product design and process capabilities. OPTICO's The professional wiring team can provide customers with a variety of customized products and solutions. All our jumpers will be strictly tested before leaving the factory to ensure that the end surface is not stained. Insertion loss and return loss conform to international telecommunication standards.

Item	Parameter
Fiber Count	24 Fibers
Connector type	MTP/MPO Male Female UPC
Polarity	A/B/C
Cable Jacket	PVC/LSZH/OFNP
Cable Diameter	3.0
Insertion loss	Standard loss:<0.7dB;Low loss:0.35dB;Super low loss:<0.2dB
Return loss	≥35dB
Wavelength(nm)	850/1300
Tensile Strength(N)	70N(Long term)/220N(Short Term)
Temperature(℃)	-40~+85

Advantages

• US Conec/Senko/OPTICO MTP/MPO connectors are available

• High return loss and low insertion loss

• High reliability and stability

• Customized design and solution could be provided soon

• CE/ISO/CPR/ROHS/FCC are available

How we could stand by you

• 100% 3D tested by or Sumix devices

• 100% high and low temperature cycle test

• Can accept 168 hours of high temperature boiling experiment if necessary

• 800000CH/Month of production capacity(so very short lead time)

• International laboratory test report can be provided

Strictly factory testing

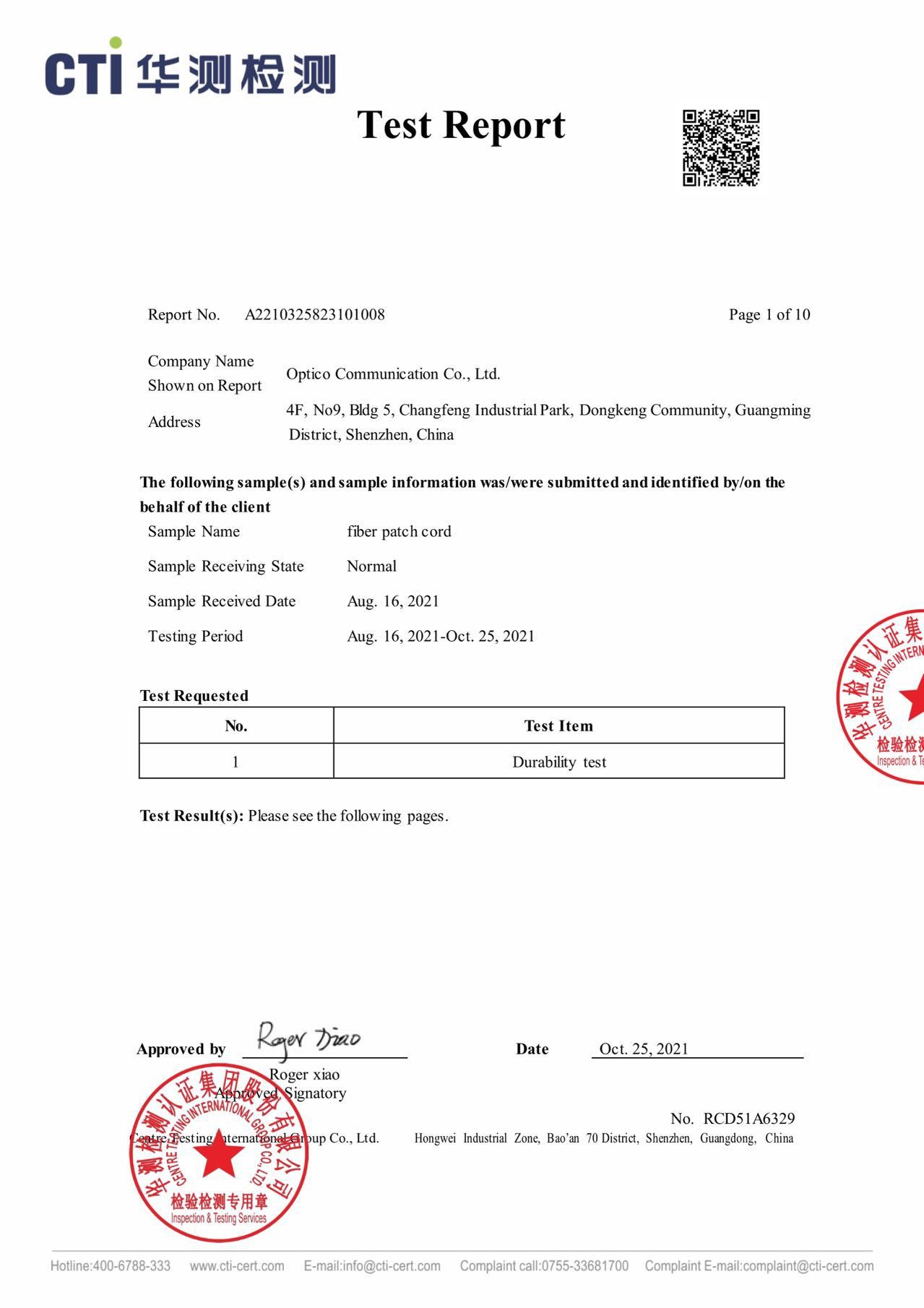

CTI Reliability testing report(Meet GR-1435 Standard)

We constantly adjust and optimize our 12f 24f Fibers Om3 Om4 Outdoor Waterproof IP67 Odva MPO to MPO Patch Cord and services according to the needs of our customers. We are well aware that the development of an enterprise cannot be separated from the strong support of the society and the masses. We operate for the sake of our customers and pursue a win-win business model to promote the continuous development of our business operation.
