1ru Rack Mount Holding 4PCS Lgx CWDM/DWDM Module

Our company not only provides high quality standard MT MT Jumper, Assessories, GYDXTW Aerial Duct Cable, relying on our technical advantages, focusing on providing customers with high requirements, high difficulty and special requirements of customized products. Our company adheres to the development concept of integrity and innovation. We believe that through our efforts and pursuit, we will be able to achieve mutual benefit and win-win with our customers. We hope to build an excellent talent team that is compatible with our global layout strategy and sustainable. The key words we advocate are, concept, technology, management, market innovation, and the need for boldness, perseverance and competence. Our persistent pursuit of 'pursuing product stability, paying attention to customer experience, and increasing customer care' makes us closest to the market, most intimate with customers and more suitable for the market.

CWDM LGX Module

1.CWDM Coarse Wavelength Division Multiplexer, sparse wavelength division multiplexer, also known as coarse wavelength division multiplexer.DWDM (Dense Wavelength Division Multiplexing) is undoubtedly the preferred technology in today's optical fiber applications, but its high price makes many operators who are not well-off at hand hesitate quite a bit. Is there or can enjoy wavelength division multiplexing technology at a lower cost? Faced with this demand, CWDM (sparse wavelength division multiplexing) came into being.

2.CWDM is a low-cost WDM transmission technology for the access layer of the metropolitan area network. In principle, CWDM uses an optical multiplexer to multiplex optical signals of different wavelengths into a single fiber for transmission. signal, connect to the corresponding receiving device.

Parameters		Value
Passband(nm）		ITU±6.5
Operating wavelength（nm）		1260-1620
4/8/16/18CH CWDM	Port	1270/1290/1310/1330/1350/1370/1390/1410...

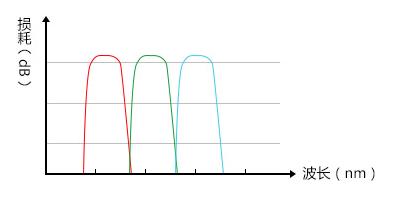

	Insertion loss（dB）	<1.2/<2.7/<3.2/<3.7
Isolation(dB)	Adjacent isolation	>30
	Non-adjacent isolation	>40
Ripple(dB)		0.3
PDL(dB)		0.2
PMD(ps)		0.2
RL(dB)		>45
Directivity(dB)		>45
Maximum Optical power(mw)		500
Fiber Diameter		0.9mm
Package Dimension(mm)		180*178*44/180*178*22
Connector		LC/UPC or custom

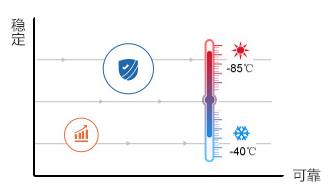

Temperature		-40~+80

Advantages

• The device is small in size

• Low power consumption

• easy maintenance

• Convenient power supply, can use 220V AC power supply

• CE/ISO/ROHS√

• 100% tested by YOKUGAWA high Precision Spectrometer

• OXC Cabling solution could be design

Application

1.Metro WDM System

2.Access networks

3.Enterprise networks

4.Line Monitoring

certificates

The 16CH CWDM module produced by OPTICO not only implements different forms of transmission, but also minimizes the loss of the entire optical fiber link on the basis of a large amount of fiber resource savings.

OPTICO's CWDM plug-in module complies with international standards.

If interested,welcom to consult!

Tips：

Due to the Covid-19,sorry that you and our team couldn't visit each other face to face.In order to make the customers know us more,please visit our VR factory,it is just like you were really standing in our factory.

OPTICO Fiber Assembelies Production Line VR:https://www.linked-reality.com/company/15664

We are capable of developing different 1ru Rack Mount Holding 4PCS Lgx CWDM/DWDM Module to supply the best quality products and service to the customers. Our high quality products and reasonable price have been widely approved by our customers both in home and abroad. We strive to maintain harmony with all relevant parties, and always pay attention to harmony and coexistence. We are dedicated to the industry, focus on the main industry, specialize in technology, adhere to a serious and responsible, scientific and rigorous work style.
