8F MPO LC OM4 Breakout Cable

8F MPO LC OM4 breakout cables provided by OPTICO have significant advantages in terms of high reliability and customization.This 8 Fiber harness cable is used for a direct connection between QSFP+ to (4) SFP+ ports .

MPO MTP cabling is increasingly chosen because traditional LC cabling systems have long been unable to meet the high transmission rate and high density requirements in large data centers. This wiring scheme is different from LC wiring and can perfectly meet the requirements of high-speed, high-density and structured wiring.

8F MPO LC OM4 breakout cables offer some advatageges :

1. Stability and durability

The ferrule design of MTP connectors reduces the possibility of signal instability to a certain extent and improves durability.

2. High density and scalability

MTP connectors conform to the carrier-grade Telcordia standard (the original Bellcore standard). For example, the LC duplex connection in a 1U chassis can accommodate 144 fibers, while the MTP can accommodate 864 fibers, a number close to six times that of the former.

• Tips:

Due to the COVID-19, sorry that you and our team couldn’t visit face to face with each other. In order to make the customers know us more, please visit our VR factory, it is just like you were really standing in our factory.

OPTICO Fiber Assemblies Production Line VR :https://www.linked-reality.com/company/15555/en

Connector A	MPO Female	Connector B	LC UPC Duplex
Fiber Mode	OM4	Wavelength	850/1300 nm
40/100G Ethernet Distance	100 m at 850 nm	10G Ethernet Distance	300 m at 850 nm
Glass Fiber	Corning/YOFC	Operating Temperature	-10°C to 70°C
MPO Connector IL	＜0.25 dB(super low) ＜0.35 dB(low loss) ＜0.70 dB(standard loss)	LC Connector IL	≤ 0.2 dB
MPO Connector RL	≥20	LC Connector RL	≥ 20 dB
Cable Jacket	LSZH/PVC/OFNP	Fiber Count	8 Fibers

Features

• Imported ferrule, Hakusan ferrule

• 100% 3D tested/End surface tested/Loss tested/Polarization tested/ Reliability tested before delivery

• High and low temperature cycle test

• 3D tested by Sumix device


• All MTP cable passed CPR-A2/B3 certification/CPR-Dca certification

• Fiber Assemblies passed CE/ISO/ROHS/CPR system certification

• US Conec/Senko/OPTICO brand are available

• Standard loss/Low loss/Super low loss are available

• 100000pcs/month of production capacity, fast delivery time

• 8-144 fibers are available

Applications

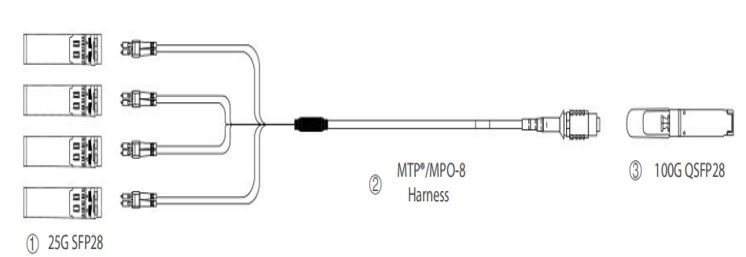

25G to 100G Direct Connectivity Cabling

10G to 100G Direct Connectivity Cabling

Certications (meet GR-1435 standard)
