2X32 Sc/APC Plastic Box Fiber Optic PLC Splitter for Gpon Network

The company mainly produces GPON OLT Class C Plus SFP Transceiver, LC To LC OM2 Muti mode Duplex Patch Cord Cable, FC Fixed Attenuator Male Female, and always puts all the power of the company into the technical field of GPON OLT Class C Plus SFP Transceiver, LC To LC OM2 Muti mode Duplex Patch Cord Cable, FC Fixed Attenuator Male Female. We hope to cultivate talents with dedication, integrity, teamwork spirit and innovation ability by relying on the innovative concept of continuous transcendence and healthy enterprise atmosphere. All the resources of our company come from the society, and we cannot survive and develop without the society, so it is our duty and obligation to return the society and benefit the society.

2x32 ABS PLC Splitter

2x32 ABS PLC Splitter --- PLC splitter, also called planar waveguide optical splitter. It is the key component to connect OLT and ONU. In passive optical networks, PLC splitters are typically installed between an Optical Line Terminal (OLT) and an Optical Network Unit (ONU) or Optical Network Terminal (ONT) close to the end user. The optical signals are split and transmitted to the end users of the optical network.

The connector type and the packaging type of the 2x32 ABS PLC Splitter can be customized according to diffferent needs.

Parameter		2x2	2x4	2x8	2x16	2x32	2x64
Operating Wavelength (nm)		1260~1650
Fiber Type		G657A or as customized
Typical Insertion Loss (dB)		4.0	7.6	11.0	14.5	17.5	21.2
Loss Uniformity(Max.)		0.8	1.5	1.5	2.0	2.5	2.5
PDL(Max.)		0.2	0.2	0.4	0.4	0.4	0.4
Return Loss(dB)		≥55
Directivity(dB)		≥55
Wavelength Dependent Loss(dB)		≤0.3
Operating Temperature(℃)		-40~+85
Dimension(mm)		100x80x10	100x80x10	100x80x10	120x80x18	120x80x18	140x115x18

Features

Low insertion loss: ≤17.5dB

High return loss: ≥55dB

PDL automatic screening system（Ultra low PDL is available)

High reliability and stability

Both standard and premium grade are available

100% 3D tested by imported Daisi/Sumix

High-low temperature cycle test

FTTH Cabling solution could be design

Applications

2x32 ABS module can be used in the following situations:

• Fiber to The Point (FTTX)

• Fiber to The Home (FTTH)

• Passive Optical Networks (PON)

• Gigabit Passive Optical Networks (GPON)

• Local Area Networks (LAN)

• Cable Television (CATV)

• Test Equipments

Certifications

Shenzhen OPTICO Communication Co., Ltd is a high-tech enterprise incorporating R&D, production and sales of fiber optic passive components, which include PLC splitter, patch cord, MPO/MTP, CWDM/DWDM, fiber optic cable, fiber connector, adapter, attenuator, splice closure, terminal box, ODF etc.

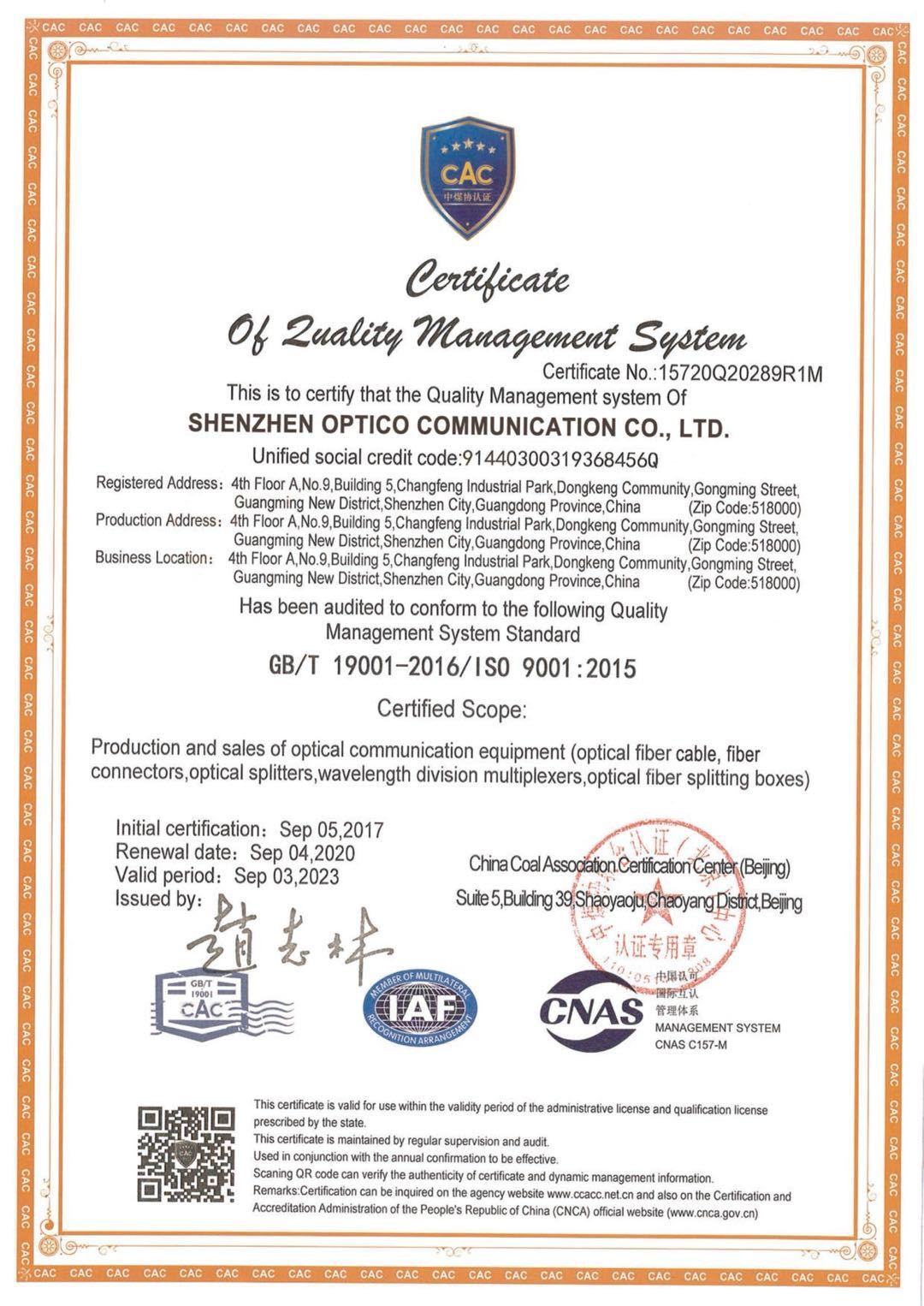

We adhere to the value of "quality first" and our products are up to the standard of CE, RoHS, FCC, CPR and IS09001 certificates.

National High-tech Enterprise Certificate

FAQ

Q1. What is your delivery time?

Generally, it will take 3~7 days after deposit payment.

The specific delivery time depends on the items and the order quantity.

Q2. Can you produce according to the samples or drawing?

Yes, we can produce by your samples or technical drawings. We also can design and open the mold for you.

Q3. What is your factory address?

Addr: 4th Floor, Building 5, No. 9, Changfeng Industrial Park, Dongkeng Community, Guangming District, Shenzhen, Guangdong Province.

Welcome to visit our factory!
