2X4 Micro Type PLC Splitter Without Connector

With advanced technologies and facilities, strict high quality regulate, reasonable price tag, excellent support and close co-operation with shoppers, we have been devoted to furnishing the best benefit for 8CH DWDM Module, ST to ST SX SM Fiber Patchcord, LC Fixed Optical Attenuator Male Female. We always insist on providing high-quality products and services to customers at home and abroad with excellent quality and perfect after-sales service. Our company takes the good faith as the foundation, strives for the survival by the quality, wins the customer trust by the service quality. In order to further meet the needs of traders, importers and exporters, our company has carefully built a set of one-stop service for customers. You only need to tell us your product needs, and we will solve all problems for you.

Introduction

The 2x4 Mini PLC Splitter can be installed in miniature fiber splicing boxes, fiber trays, junction boxes and even data communication racks. Second, we provide a reliable way to split fiber into multiple paths. We offer configurations from 1x2 to 1x128 and 2x2 to 2x64 as well as special types of 1x3/1x6/1x9/x12 splitting. More importantly, our products have high reliability, small size, wide operating wavelength range and good channel-to-channel uniformity. Finally, our products are widely used in PON networks to achieve optical signal power distribution.

Feature

The 2x4 Mini PLC Splitter have high return loss and low insertion loss, and are available in singlemode and multimode options. Secondly, our products have high reliability and stability. And we can quickly provide customized designs and solutions. What's more, our products have small size, wide operating wavelength range, high reliability and good uniformity. Lastly, our products are especially suitable for connecting local and terminal equipment and realizing optical signal splitting in passive optical networks (EPON, BPON, GPON, etc.).

Package Type	Steel Tube	Configuration	2x4
Fiber Type	G657A or customized	Fiber length	Customized
Fiber type	900um	Operating Bandwidth	1260~1650nm
Insertion Loss	<7.3dB	Return Loss	>55dB
Loss Uniformity	≤1.5dB	Directivity	≥55dB
PDL	≤0.2dB	Temperature Dependent Loss	≤0.5dB
Steel Tube Dimensions (HxWxD)	4x7x60mm	Work and Storage Temperature	-40 to 85°C

How we could stand by you

• 100% 3D tested by Daisi or Sumix devices

• 100% high and low temperature cycle test

• Can accept 168 hours of high temperature boiling experiment if necessary

• Connectors can be Grade B

• 2000000CH/Month of production capacity(very short lead time)

• International laboratory test report can be provided

Applications

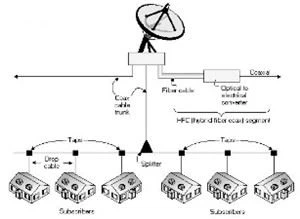

CATV Networks	FTTH Networks	FTTX Networks

Our company has been committed to providing professional services for customers, providing high-quality 2X4 Micro Type PLC Splitter Without Connector and technical services is our purpose. We actively carry out product updates and iterations, open up social marketing networks, improve the conversion of inquiries, and devote ourselves to providing customers with a more three-dimensional and comprehensive marketing model. All members sincerely thanks for all old and new customers' support.
