Break-out Fiber Optical Cable

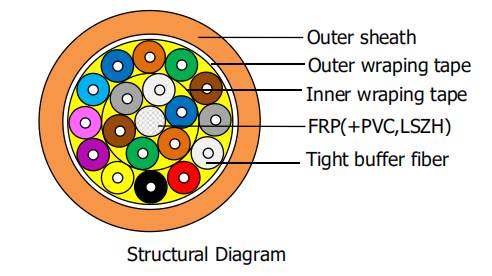

1.Break-out Fiber Optical Cable---Breakout cables are also known as fan-out cables. A breakout cable consists of two or more single-core cables bundled together around a central strength member. Each fiber has its own jacket, and all fibers are enclosed within the same outer jacket. Therefore, branch cables can also be split into separate simplex cables for separate use when traversing building walls. Breakout cables are typically designed with tight buffering, with fiber counts ranging from 2 to 24.

2.OPTICO' s Break-out Fiber Optical Cable is ideal for installations requiring an extremely rugged and reliable fiber optic cable design where maximum mechanical and environmental protection are necessary. It's the easiest fiber cable to install where direct termination of connectors to sub-units and direct run to panels and equipment is desired. Direct termination of the plenum breakout fiber cable to each subcable provides additional strain relief for better connector retention during moves, adds, and changes.

Cable Count	Cable weight (kg/km)	Diameter		Tensile strength		Crush resistance		Bending radius
		Tight buffer	Cable	Long term	Short term	Long term	Short term	BG		Others
		(mm)		(N)		(N/100mm)		Static	Dynamic	Static	Dynamic
4	38	2.0±0.05	6.6±0.2	200	400	300	1000	5· D	10·D	10·D	20·D
6	58	2.0±0.05	7.8±0.2	250	500	300	1000	5· D	10·D	10·D	20·D
8	77	2.0±0.05	19.0±0.3	300	600	300	1000	5· D	10·D	10·D	20·D
12	135	2.0±0.05	11.9±0.4	400	800	300	1000	5· D	10·D	10·D	20·D
18	153	2.0±0.05	12.7±0.4	550	1000	300	1000	5· D	10·D	10·D	20·D
24	185	2.0±0.05	15.5±0.5	700	1300	300	1000	5· D	10·D	10·D	20·D

Features

·Good mechanical and environmental performance.

·Flame-retardant meets relevant standards.

·Support high-capacity data transmission.

·Suitable for indoor horizontal cabling.

·Suitable for pigtail fiber, jumper wire, and optical connection in optical communication machine room, optical distribution frame, optical device or equipment, etc.

·Jacket can be made of flame retardant PVC,LSZH flame retardant polyolefin or other agreed material.

·Tight buffer color can be customized.
