Fwdm 3 Port 1310nm 1490nm 1550nm Wdm Multiplexer

We pay attention to and improve the quality of business operations to ensure the production of high-quality 2x2 Single Mode FBT Coupler, 2x8 Mini PLC Splitter, 12F MPO Singlemode Connector. The company's philosophy is to provide consumers with value-for-money products and comprehensive services. In building the enterprise talent team, both moral and talent is the core of our company talent concept. The development of enterprises cannot be separated from the development of society, and without the development of society, there is no development of enterprises.

Introduction

The 3 Ports FWDM 1310 1550nm are mainly used in passive wavelength division multiplexing system module products. Our products are based on thin-film filter technology, which has the advantages of smooth channel bandwidth, high isolation, low insertion loss, high environmental stability and reliability, and is widely used in WDM or DWDM optical communication network systems. More importantly, our products have good quality. Finally, if you are interested in our products, please contact us in time.

Feature

The 3 Ports FWDM 1310 1550nm use high-performance thin-film filters to ensure high-quality optical performance and have stable and reliable characteristics. Secondly, our products have low insertion loss, low polarization loss, high isolation and superior environmental stability. More importantly, our products are widely used in signal monitoring, optical line terminals, optical network units, fiber-to-the-home, cable TV systems, WDM systems, etc. Finally, it has a good service life.

Specification	unit	3 Ports FWD
Working wavelength	nm	1260-1670
Transmission bandwidth	nm	1540-1560	1524-1544&1596-1625	Customised
Reflection bandwidth	nm	1260-1360&1480-1500	1260-1500&1550-1581&1640-1670	Customised
Transmission insertion loss	dB	≤0.6
Reflection insertion loss	dB	≤0.4
Transmission isolation	dB	≥30
Reflection isolation	dB	≥15
Return loss	dB	≥50
directionality	dB	≥50
Ripple loss	dB	≤0.3
Package size	mm	4.0*30mm；mini：3.2*30mm、2.6*30mm
Operating temperature	°C	-40~+85

Application

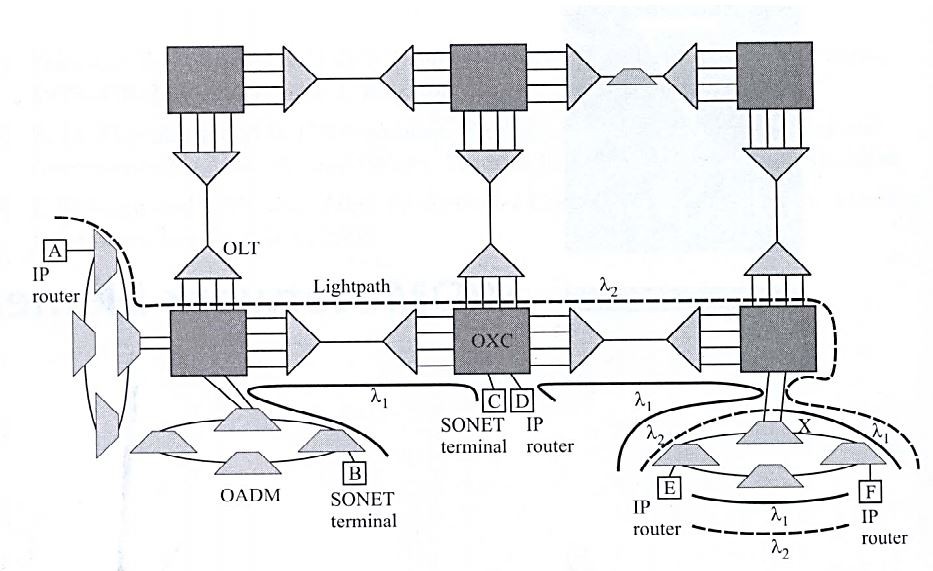

1.WDM optical communication

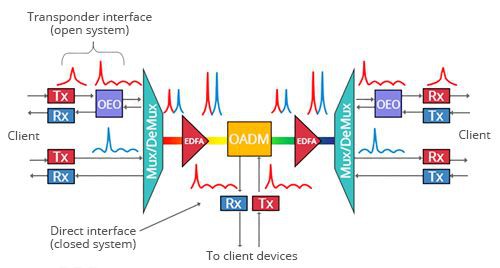

2.DWDM optical communication

3.Fiber upgrades and expansions

Certification

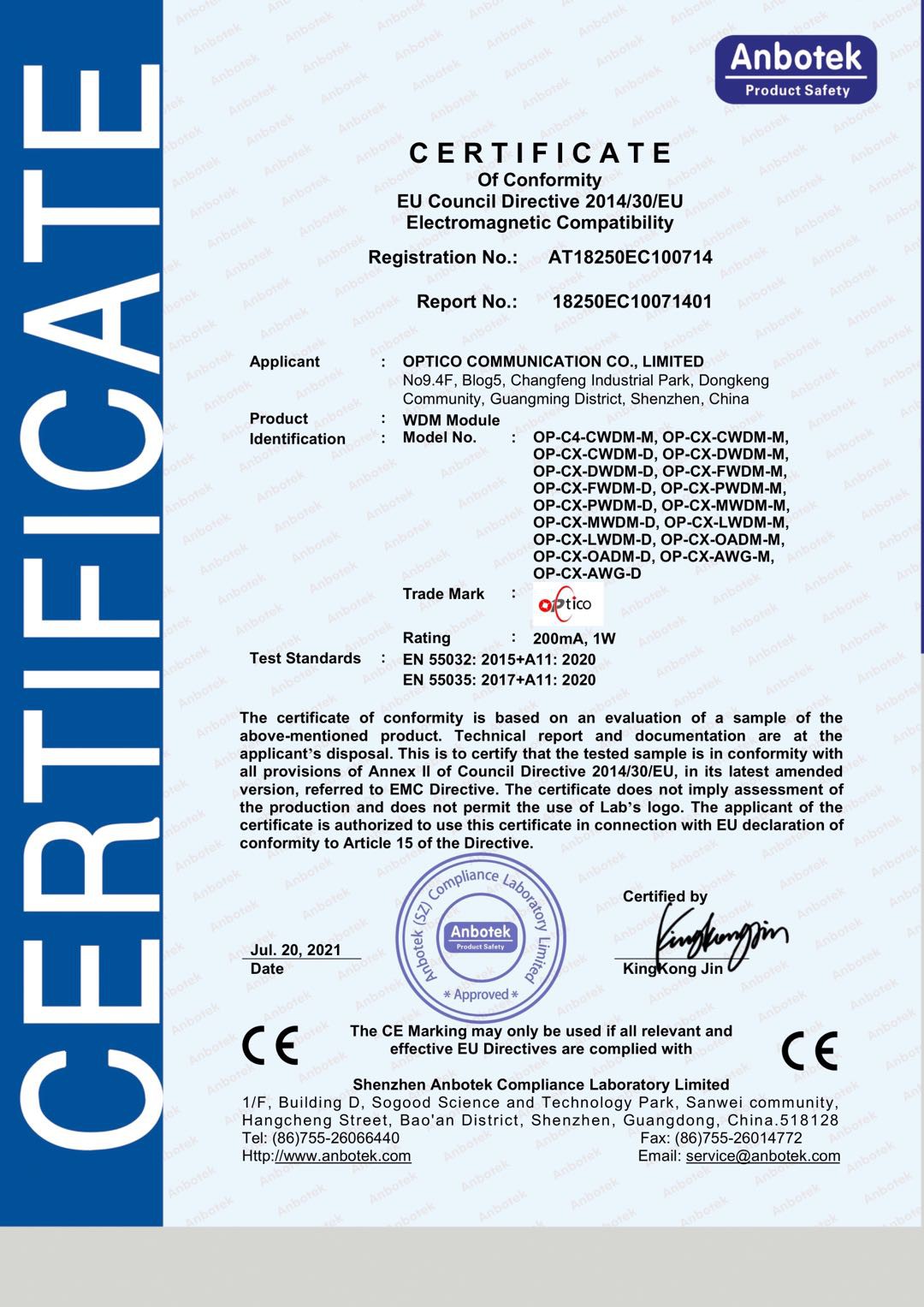

CE

CPR

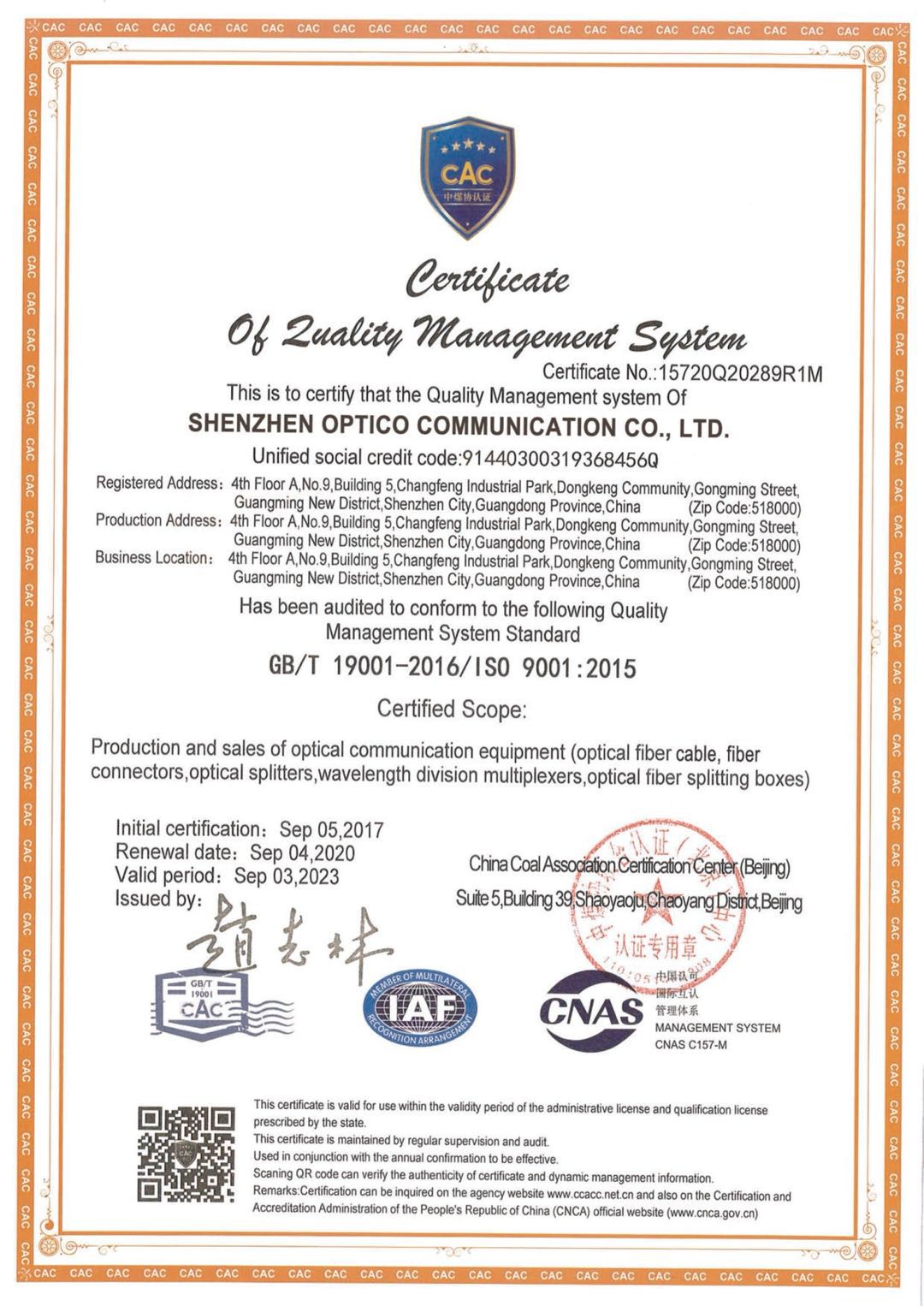

ISO9001

ROHS
