Nokia Nsn Standard Rru Equipment LC Armored Cpri Patch Cable

Facing the severe challenges of the market, we will discuss the solution of 3x3 Multimode FBT Coupler, SC To SC OM4 Muti mode Patch Cord Cable, 2x8 Mini PLC Splitter with you in order to win the business opportunities. We will make your dream come true. We continuously improve our management level and consolidate our leading position in the field of industry standardization. We are sincerely hope to establish a good long-term business relationship with you through this opportunity, based on equal, mutual benefit from now till the future.

RRU Cable

RRU (Remote Radio Unit) is a new type of distributed network coverage mode, which centrally places large-capacity macrocell base stations in an available central computer room, and centrally processes the baseband part. The radio frequency module is pulled to the remote radio frequency unit and placed on the site determined by the network plan, thus saving a large number of computer rooms required by conventional solutions; at the same time, by using a large-capacity macro base station to support a large number of optical fibers, the capacity and Conversions between overlays.

Cable count	Diameter			Tensile strength		Crush resistance		Bending radius
	Tight buffer	Short term	Long term	Short term	Short term	Long term	Short term	Staitc	Dynamic
	(mm)			(N)		(N/100m)		(mm)
2	0.9±0.05	1.9±0.05	7.0±0.2	200	660	300	1000	10·D	20·D
4	0.9±0.05	1.9±0.05	7.0±0.2	200	660	300	1000	10·D	20·D
6	0.9±0.05	1.9±0.05	12.8±0.2	200	660	300	1000	10·D	20·D
8	0.9±0.05	1.9±0.05	12.8±0.2	200	660	300	1000	10·D	20·D
12	0.9±0.05	1.9±0.05	15.0±0.2	200	660	300	1000	10·D	20·D

Technical Characteristics

·Good mechanical and environmental performance.

·Good crush resistance and flexibility.

·The simplex cables can be terminated separately.

·The stranded structure offers excellent mechanical performance

·The non-metal design prevents the electromagnetic interference.

·Suitable for indoor cabling, RRU cabling, and optical connection in optical communication machine room, optical distribution frame, optical device or equipment, etc.

·Jacket can be made of LSZH flame retardant polyolefin or other agreed material.

Environmental Performance

·Transportation & Storage temperature: -40℃-±80℃

·Installation temperature: -30℃-±70℃

·Operation temperature : -40℃-±80℃

Application

mobile communication

Indoor coverage scene

Corridor, indoor wiring, shaft, etc.

Certificate

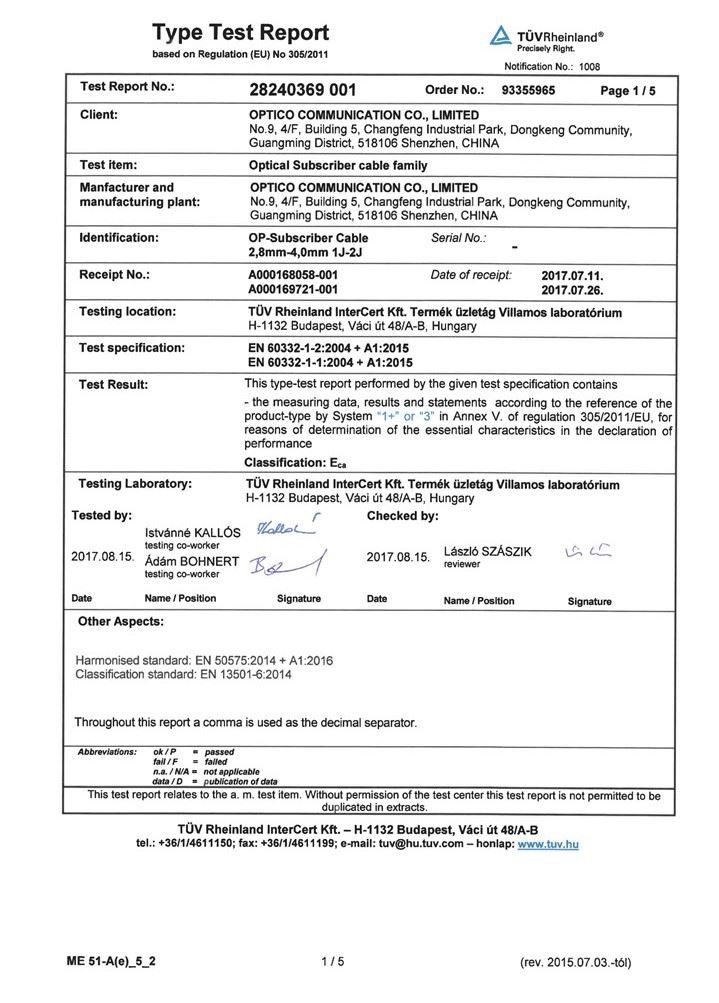

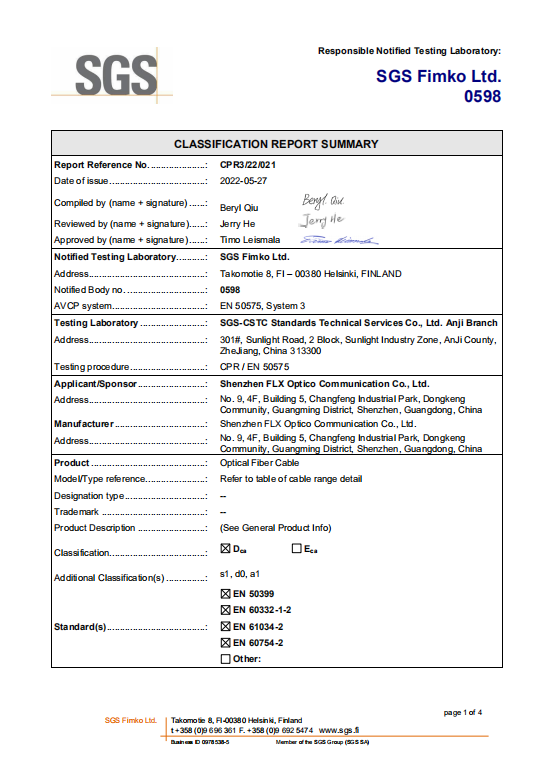

CPR-A2 CPR-B3 ISO9001 ROHS
