72F MPO Fiber Patch Cable OM5 Trunk Patch Cord
Trunk Cable Series provides a rapid solution for multiple connections in database
Space-saving, easy installation, neat wiring, low maintenance cost
Connector brands are available from US Conec MTP or OPTICO MPO
Products Description
MTP/MPO Trunk Cable Series provides a rapid solution for multiple connections, especially for applications such as data centers that require high density, rapid deployment, and high data performance.
Optico Product strength
-The fiber counts can be 8F/12F/16F/24F/32F/36F/48F/72F/96F/120F/144F, which can also be customized.

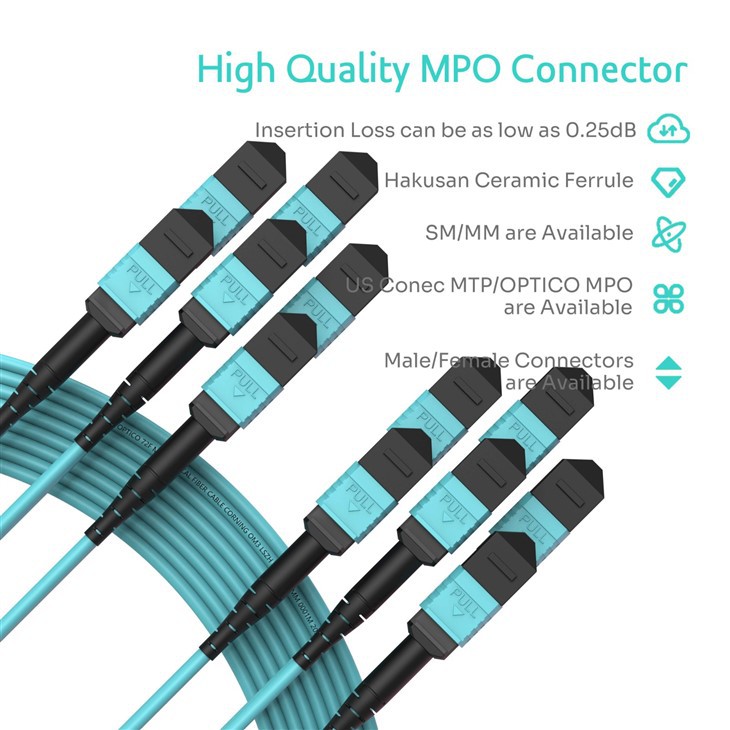

-Connector brands are available from US Conec MTP or OPTICO MPO.
-MPO connectors are available with PINs (Male) and No-PINs (Female)
-The optical fiber brand is Corning/YOFC.
-Available in different fiber modes, including single mode fiber (OS2) and multi-mode fiber (OM3/OM4/OM5).
-There are options for insertion loss, available in Standard Loss(≤0.5dB), Low Loss (≤0.35dB), and Ultra-low Loss (≤0.25dB).
-The printing, length, diameter and color of the cable can be customized.
Products Description
| Physical Properties | Parameter |
| Fiber Count | 72 Fibers |
| Fiber Mode |
OM5 |
| Connector Type | US Conec MTP/OPTICO MPO Male/Female |
| Polarity | Type A/B/C |
| Cable Jacket | PVC/LSZH/OFNP |
| Jacket Colour | Green |
| Cable Diameter(mm) | 7.0 |
| Minimum Bend Radius | 7.5 |
| Fiber and Boot Length | Customizable |
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.5 | ≤0.35 | ≤0.25 | |
| Return Loss(dB) | ≥35 | ||
| Wavelength(nm) | 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70 | 220 | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
