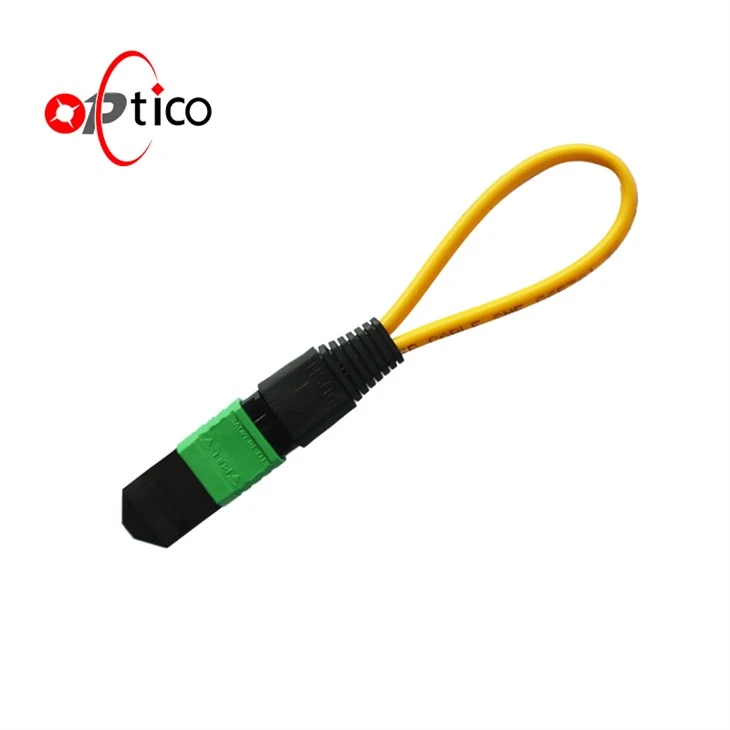

8F Optical MPO Loopback Tester Cable Singlemode Female
This 8F MPO loopback test cable is compact designed with low loss standard
Widely used in testing, troubleshooting, and verifying optics in data centers or wiring closets
Operating temperature from -40 to 85℃
MPO 8 Product Overview
8 Core MPO MTP loopback test cable is designed for data centers, MTP is a brand name, whereas MPO is the generic version of the same connector. To ensure reliable testing, a fiber test kit must include one of these durable MTP fiber loopback modules inside. It's an Ideal product for a multitude of applications that require signal looping in a MPO form factor, help quickly test QSFP and QSFP+ Fiber Transceivers at 10Gb, 40GB and 100GB rates. This module connects TX and RX components of MPO transceivers accurately, mirroring real-world conditions. PC polished MTP connectors reduce insertion loss.
MPO Loopback series specification
|
Fiber Type |
SM, MM, OM3 OM4 OM5 |
Configuration Type |
8/12/16F |
|
Fiber Connector |
MPO or MTP connector, Male/female |
Polish Type |
UPC/APC |
|
Return Loss |
≥25dB |
Insertion Loss |
≤1.0dB |
|
Jacket Type |
LSZH |
Operation Temp |
-40 to 75°C |
