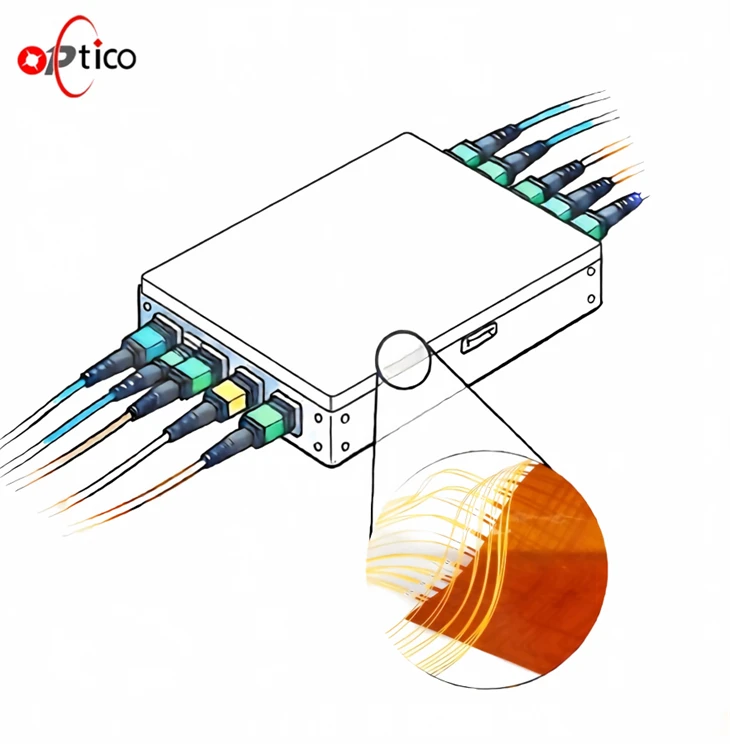

Fiber Shuffle Box
Solution for CPO and OCS with high density
Efficient and simplified fiber routing in racks
Connector optional MMC/SN-MT/MTP/MPO
Fiber Shuffle Box
Products Description
The spine-and-leaf topology in data center is increasingly popular for its high performance, redundancy, and scalability. To maintain network efficiency, administrators often need to shuffle fiber connections between spine and leaf switches.
Fiber shuffle box tackle the critical challenges of scaling AI infrastructure by simplifying fiber routing, optimizing deployment, and ensuring high-performance connectivity. Fiber shuffle does not alter optical signal modulation, amplification, or switching behavior. Instead, it systematically organizes physical fiber paths and endpoint mappings at the physical layer.
Key features
--Compact Space Utilization
Modular Shuffle Boxes reduce rack space requirements, more friendly for deployment and maintenance
--Better airflow and cooling
Freeing space for power and cooling systems critical to AI workloads, streamlining deployment in large-scale GPU clusters
--More future-ready and higher capacity
Support reuse and adjustment across multiple system generations, ideal for CPO, OCS solutions
Product Specifications
| Fiber type | SM G657A2 |
| Working wavelength (nm) | 1310nm 1550nm |
| Connector | MMC/SN-MT/MPO/MTP |
| Insertion loss | ≤0.35dB |
| Return loss | ≥65dB (SM APC) |
| Max attenuation @1310nm (dB) | ≤0.40dB |
| Max attenuation @1550nm (dB) | ≤0.30dB |
| Shuffle polarity | Type B or on request |
| Operating temperature (℃) | -20 to 70℃ |
| Storage temperature (℃) | -40 to 70℃ |
| Box dimensions | 50 x80 x15mm |
Application Scenarios
• Ultra high-density structured cabling
• AI data center GPU clusters
• New-gen MMC and CPO technology
FAQ
Q: How Fiber Shuffle Boxes Solve Scalability Challenges?
A: Shuffle Solutions tackle the critical challenges of scaling AI infrastructure by simplifying fiber routing, optimizing deployment, and ensuring high-performance connectivity. These fiber optic cabling management solutions reduce cabling complexity and minimize pathway congestion in high-density environments.
Q: What are the key benefits of Shuffle Boxes?
A: the value of Fiber Shuffle solutions lies in physical-layer structural optimization. Shuffle Boxes offer compact designs that reduce rack space requirements and minimize pathway congestion. Also, allow easy customization for specific network needs.
Q: What customization options are available for Shuffle Solutions?
A: supporting customized interfaces and routing schemes, Configurable housing sizes (1–6 RU), modular or fixed designs, and front or back access
