OPTICO SC to SC OM5 Muti-mode Patch Cord is of great quality and popularity. OPTICO SC to SC OM5 optic fiber cable is suitable for fast Ethernet, gigabit Ethernet and fiber channel applications, such as in data center, telecom room, server farms, cloud storage networks, and any place fiber jumper cables are needed.

Product Introduction

In the fierce market competition, our FC Connector 0 9mm, 1x2 Mini PLC Splitter Singlemode, FWDM Wavelength Division Multiplexer LGX Module have excellent quality and excellent market performance. With the continuous growth of the industry, we are expanding our business with confidence. The cooperation of complementary advantages can optimize the allocation of resources, enhance the competitiveness of enterprises, and more effectively meet the requirements of customers. We follow the policy of "high quality, heavy service", market-oriented, to provide quality products and satisfactory service for the majority of users. The "innovation" we emphasize is multi-faceted and multi-level innovation, covering production, technology, process, management, system, marketing, service and other aspects of innovation.

SC To SC OM5 Patch Cable

1.SC to SC OM5 patch cord is booming these years. Considering the cost of cabling, the deployment of single-mode fiber in data centers is still limited. Compared with single-mode fiber, OM5 supports four low-cost wavelengths, which can increase data capacity by 4 times while reducing the number of fibers; in addition, multi-mode fiber has more advantages in installation, troubleshooting, cleaning and maintenance, etc. , and because of this, OM5 multimode fiber is a good choice for data centers.

2.Fiber patch cords are used to make patch cords from equipment to fiber optic cabling links. There is a thicker protective layer, and active connectors are installed at both ends to realize the active connection of the optical path. With the continuous improvement of transmission rate requirements, OM5 fiber optic patch cords have begun to be used more and more.

At the beginning, OM5 fiber patch cord was called broadband multimode fiber patch cord (WBMMF), which is a new standard for fiber patch cords defined by TIA and IEC. And can support 4 wavelengths.

In terms of structure, it is not significantly different from OM3 and OM4 fiber patch cords, so it is fully backward compatible with traditional OM3 and OM4 multimode fiber patch cords.

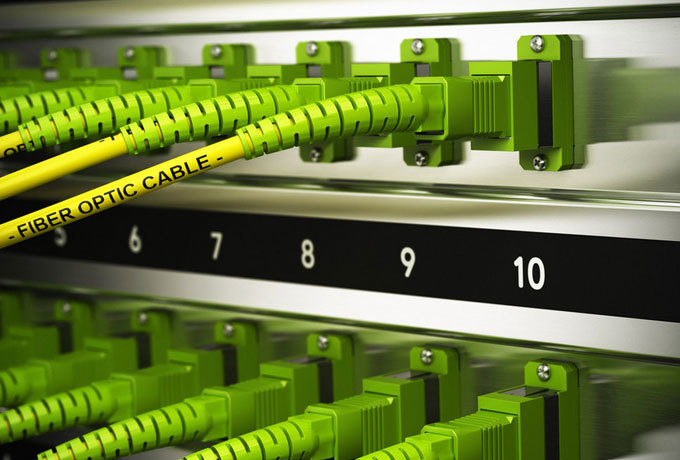

preview

ParameterLC/SC/FC/ST/MU/MTRJ/E2000
SMMM
UPCAPCAPC
Work Wavelength (nm)1310,1490,1550850,1300
Insertion Loss (dB)≤0.25≤0.20≥65
Return Loss (dB)≥55≥65≥55
Repeatability (dB)≤0.10
Interchangeability (dB)≤0.20
Plug Testing (time)≥1000
Tensile Strength (N)0.9mm(9N); 2.0mm(70N); 3.0mm(75N)
Durability (dB)≤0.20
Operation Temperature (℃)-40~+85
Storage Temperature (℃)-20~+75
Features

• High quality CCTC ceramic ferrules

• Good repeatability and interchangeability

• Perfect solution for installs that require

• CE/CPR/ISO/ROHS√

• 100% 3D tested/Temperature tested/Loss tested before delivery

• High and low temperature cycle test

• Stable data interchangeability

• Long mating cycles

IL&RL TEST.jpg

IL&RL Test

3d test.jpg

3D Test

End-face Test.jpg

End-face Test

Apllications
data center.jpg

Data Center


FTTH


FTTH

Certifications

test report1.jpg

CTI: temperature test

test report 2.jpg

CTI: drop test

test report 3.jpg

CTI: durability test

test report 4.jpg

CTI: temperature and humidity test

test report 5.jpg

CTI: temperature test

test report 6.jpg

CTI: loss test

test report 7.jpg

CTI: resistant to bending

test report 8.jpg

CTI: sine vibration test
