Green Color 2km Indoor Loose Tube Optical Fiber Om4 12 Fibers Distribution Cable

Our company pays attention to the cultivation of innovation ability and constantly increases the development of new 24 Singlemode MTP Trunk Cable, 10G CWDM SFP 10km Transceiver, 4CH DWDM LGX Module. We welcome potential buyers to contact us for OEM and ODM orders. The transformation and development of our company has achieved new results, and the industrial pattern has been improved day by day.

Optical Cable

Distribution Fiber Optical Cable---Unlike branch cables, distribution cables are smaller in size and lighter in weight. Distribution cables can be denser in fiber count than drop cables with up to 144 fibers. Many fibers may not be used immediately, but can be reserved for future expansion. Despite the more compact design of distribution cables, the tight-buffered fibers inside the cable are only bundled in a single outer jacket for protection. However, this makes the distribution fiber optic cable easy to handle and strip for field termination.

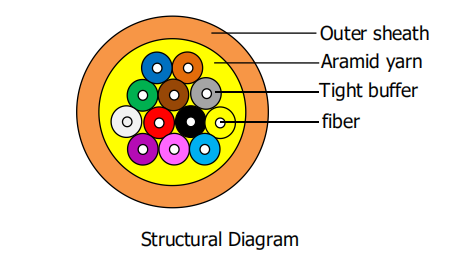

OPTICO' s Distribution Fiber Optical Cable is composed of high quality colored tight buffers, aramid yarn and a PVC /LSZH outer jacket. They are primarily designed for both indoor and outdoor applications. Their small bend radius allows for fast installations and easy terminations within confined spaces. Our Distribution Cable is also available in a wide variety of colors.

Cable Count	Cable weight (kg/km)	Diameter		Tensile strength		Crush resistance		Bending radius
		Tight buffer	Cable	Long term	Short term	Long term	Short term	BG		Others
		(mm)		(N)		(N/100mm)		Static	Dynamic	Static	Dynamic
4	20	0.9±0.05	5.0±0.1	120	300	200	1000	5· D	10·D	10·D	20·D
6	22	0.9±0.05	5.2±0.1	120	300	200	1000	5· D	10·D	10·D	20·D
8	26	0.9±0.05	5.5±0.1	150	350	200	1000	5· D	10·D	10·D	20·D
12	36	0.9±0.05	6.5±0.1	180	500	200	1000	5· D	10·D	10·D	20·D
24	52	0.9±0.05	8.3±0.1	200	660	200	1000	5· D	10·D	10·D	20·D

Features

·Good mechanical and environmental performance.

·Flame-retardant meets relevant standards.

·Support high-capacity data transmission.

·Suitable for indoor horizontal cabling.

·Suitable for pigtail fiber, jumper wire, and optical connection in optical communication machine room, optical distribution frame, optical device or equipment, etc.

·Jacket can be made of flame retardant PVC,LSZH flame retardant polyolefin or other agreed material.

·Tight buffer color can be customized

Certifications

OPTICO focuses on the research and development and sales of optical fiber network communication products, providing comprehensive solutions for optical fiber communication products and optical fiber connection system components. We provide fiber optic components, such as fiber patch cords, PLC splitters, SFP optical modules, MTP/MPO fiber optic patch cords, CWDM/DWDM wavelength division multiplexers, FTTH, FTTA, FTTR solutions, data center cabling solutions, etc. All products adopt strict quality standards in production and inspection to ensure excellent operating performance and good product stability, and ensure long-term use of products safely and reliably.

Tips：

Due to the Covid-19,sorry that you and our team couldn't visit each other face to face.In order to make the customers know us more,please visit our VR factory,it is just like you were really standing in our factory.

OPTICO Fiber Assembelies Production Line VR:https://www.linked-reality.com/company/15664

We have already won a high reputation with our excellent Green Color 2km Indoor Loose Tube Optical Fiber Om4 12 Fibers Distribution Cable, and customer's expectation is the driving force for us to continuously improve our professionalism and service quality. We continue to improve the company's environment and deepen the interaction with related parties. The company is willing to cooperate sincerely with customers at home and abroad, and develop together!
