GYTA Outdoor Underground Duct Optical Fiber Cable

We enjoy a high reputation in the market and are a Polarization PM SC SM Fiber Patch Cord, 8F MPO LC SM Breakout Cable, FWDM supplier formulated by many companies. We ensure the quality and service life of each product with exquisite production and processing technology and strict production procedures. With the support of many long term cooperated customers, our products are welcomed all over the world. Our talent management is based on strategy and organizational development needs, and forms a differentiated management system for different talent groups, forming a closed loop of talent criteria, planning, selection, training, use and retention.

GYTA Duct Cable

The structure of GYTA cable is to put single-mode or multi-mode optical fiber into a loose tube made of high-modulus polyester material, and the tube is filled with waterproof compound. The center of the cable core is a metal reinforcement core, and for some core numbers, a layer of polyethylene (PE) needs to be extruded outside the metal reinforcement core. The loose tube (and filler rope) is twisted around the central reinforcing core into a compact circular cable core, and the gap in the cable core is filled with water blocking filler. The plastic-coated aluminum tape (APL) is longitudinally wrapped and then extruded into a cable with a polyethylene sheath.

Cable count	Diameter（mm）	Cable weight(kg/km)	Tensile strength		Crush resistance		Bending radius
			short term	short term	long term	short term	short term	longterm
			(N)		(N/100mm)		(mm)
4~24	9.1	77	600	1500	300	1000	10·D	20·D
36	9.4	86	600	1500	300	1000	10·D	20·D
48	9.8	90	600	1500	300	1000	10·D	20·D
72	10.3	108	600	1500	300	1000	10·D	20·D
96	11.6	132	600	1500	300	1000	10·D	20·D
144	14.3	187	600	1500	300	1000	10·D	20·D

Features

• Low loss, low dispersion.

• Proper design and precise excess length control offer excellent mechanical and environmental properties to cable.

• Water-blocking cable gel is fully filled outside the strength member and inside the cable core, which ensures the cable’s moisture proof and water barrier performance.

• The longitudinal wrap of aluminum tape enhances cable’s moisture proof performance and ensures cable’s flexibility and anti-bending capability.

• Jacket can be made of LSZH material,(The model turns to GYTZA in the case)

Application

• Long distance communication

• Inter-exchange communication

• CATV

• Computer network transmission system, etc.

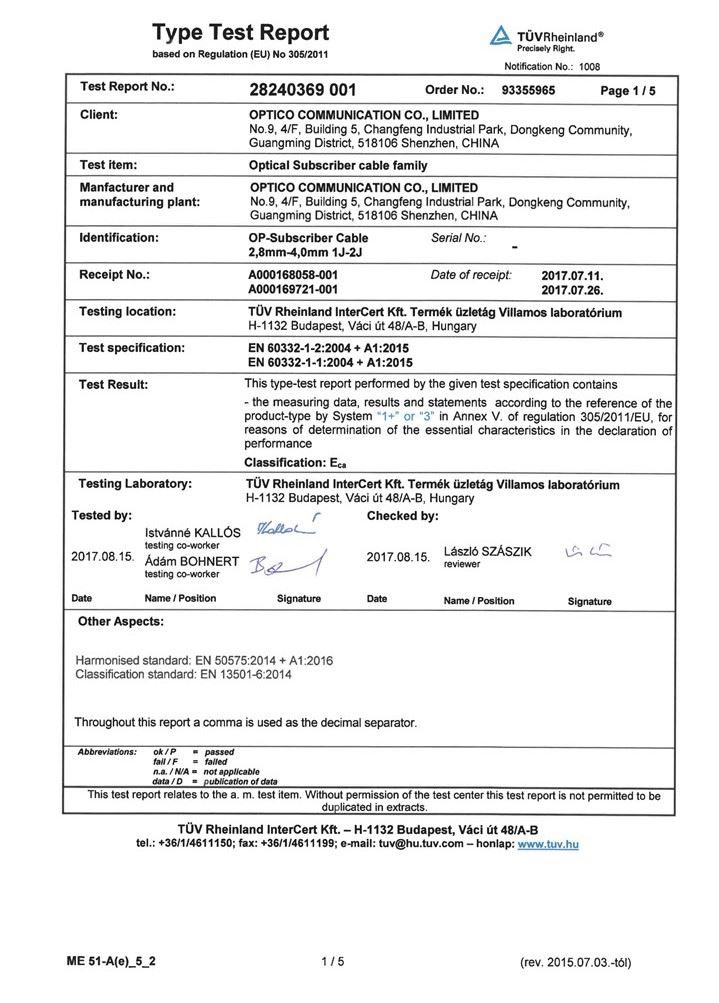

Certificates

ISO9001

RoHS

CPR-A2

CPR-B3

Tips：

Due to the Covid-19,sorry that you and our team couldn't visit each other face to face.In order to make the customers know us more,please visit our VR factory,it is just like you were really standing in our factory.

OPTICO Fiber Assembelies Production Line VR:https://www.linked-reality.com/company/15664

We have established good cooperative relations with many companies, and our products are sold all over the world and are deeply loved by customers. We will continue to innovate to pursue the leading position in the GYTA Outdoor Underground Duct Optical Fiber Cable market. We believe that the perfect system and method also depend on people to implement, and in the work, we should always put the responsibility in the first place and ensure the accuracy of the results. We continue to maintain investment in research and development, introduce and train talents, and continue to innovate in technology and management.
