Rack Mount 16CH Fiber Optic CWDM Module, Optical CWDM Mux Demux Module with Factory Price

With the continuous expansion of the group's business, we have proposed a higher level of service goals to help 1 25G 850nm Multi Mode SFP Transceiver, 1x16 LGX PLC Splitter, 24F MTP Cassette develop, forming a unique charm that cannot be copied. We pay attention to details, strive for excellence, establish our business with precision and win with quality. We meet the needs of customers in terms of quality, delivery speed and service, and help customers get the upper hand in the competition.

16CH CWDM Module

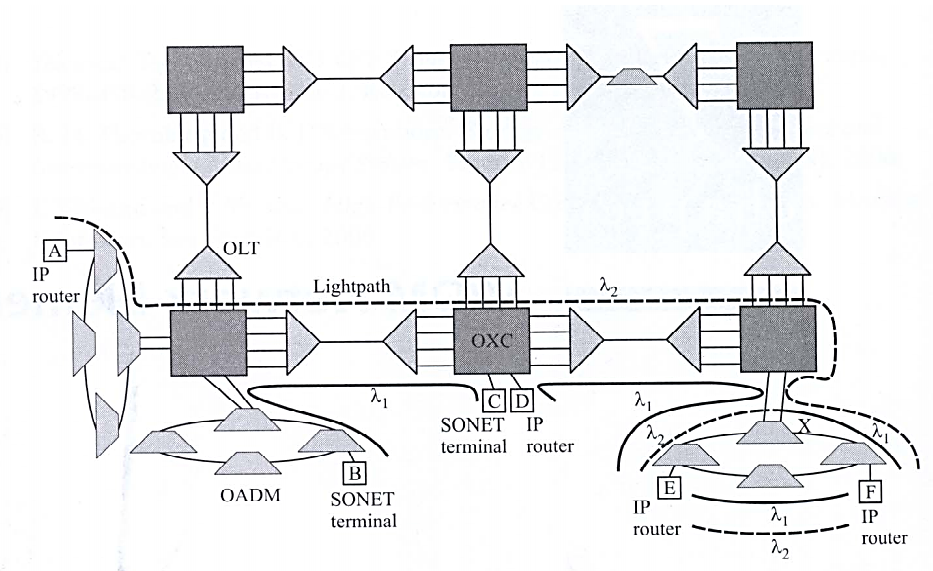

1.In some areas where the resources of telecommunication optical cables are insufficient, the business is growing rapidly, and the expansion of optical cables is urgent and inconvenient, CWDM can use a variety of old and limited optical cables, including G.653 optical cables that cannot be used in DWDM, and use point-to-point. It provides several times the bandwidth of the existing transmission capacity to realize the bidirectional aggregation of multiple services between two points, which has better cost performance than traditional DWDM. The expansion process of CWDM is very simple. It only needs to add a pair of CWDM devices at both ends to expand the optical cable capacity by 8 times. During the expansion process, the service interruption time is short. Smooth transitions.

2.Using CWDM, it is very easy to distinguish different users by wavelength and provide users with the specified bandwidth required, so that operators can more conveniently provide wavelength rental services.

Parameters		Value
Passband(nm）		ITU±6.5
Operating wavelength（nm）		1260-1620
16CH CWDM	Port	1270/1290/1310/1330/1350/1370/1390/1410...
	Insertion loss（dB）	<3.2
Isolation(dB)	Adjacent isolation	>30
	Non-adjacent isolation	>40
Ripple(dB)		0.3
PDL(dB)		0.2
PMD(ps)		0.2
RL(dB)		>45
Directivity(dB)		>45
Maximum Optical power(mw)		500
Fiber Diameter		0.9mm
Package Dimension(mm)		180*178*44/180*178*22
Connector		LC/UPC or custom
Dimension（mm）		120*80*18
Storage temperature		-40~+80°C

Advantages

1.Ultra low insertion loss
2.High isolation
3.Mux & demux
4.Compact size
5.High reliability
6.Epoxy-free optical path
7.Telcordia GR 1221 and GR-1209 compliant

Application

1.CWDM System

2.CFP transceiver modules

3.PON network

4.Line Monitoring

certificates

The 16CH CWDM module produced by OPTICO not only implements different forms of transmission, but also minimizes the loss of the entire optical fiber link on the basis of a large amount of fiber resource savings.

OPTICO's CWDM plug-in module complies with international standards.

If interested,welcom to consult!
