LC FBG Reflector Pigtail Type

1.Optical fiber reflector is an optical passive device that only allows specific wavelength bands to pass through. It uses FBG fiber optic cable gratings or filters to reflect specific reflected wavelengths back, while normally passing other communication bands that are not within the specific reflected wavelength range.

2.Optical fiber reflectors have low insertion loss in the transmission wavelength range and high reflectivity in the reflection wavelength range. They are ideal for FTTX network link monitoring and are suitable for point-to-point or point-to-multipoint networks. Typically installed in the user's home to highlight these locations in the OTDR trace by the reflection of the test signal.

Item	Unit	SC FBG Reflector Pigtail Type
Operating band	Transmission band	nm	1260~1625	1260~1600
	Reflection band	nm	1645~1655	1620~1630
IL		dB	≤1.4 1260~1360nm	≤1.4 1260~1360nm
			≤1.4 1460~1600nm	≤1.4 1460~1580nm
			≤2.0 1600~1625nm	≤2.0 1580~1600nm
			>21 1645~1655nm	>21 1620~1630nm
RL		dB	>35 1260~1360nm	>35 1260~1360nm
			>35 1460~1600nm	>35 1460~1580nm
			>25 1600~1625nm	>25 1580~1600nm
			≤1.0 1645~1655nm	≤1.0 1620~1630nm
PDL		dB	≤0.4
Ripple		dB	≤0.6
TDL		dB	≤0.5
Maximum optical power		dBm	≤27
Ferrule type		/	PC/APC
Transmission direction		/	Unidirectional
Fiber Type		/	Corning G657A2 and 900um loose tube
Operating temperature		°C	-20~+70
Operating humidity		%RH	5~95
Storage temperature		°C	-40~+85

Features

1.Standard size, quick installation

2. The parameter performance is stable

3. In line with international standards: GR 326 or IEC 61300-2, IEC 61754-4, RoHS, UL 94-V0 and other standards.

Application

1. FTTX

2. PON

3. Data center

4. OTDR test

5. Central computer room test

6. Fiber Line Monitoring



   Data center

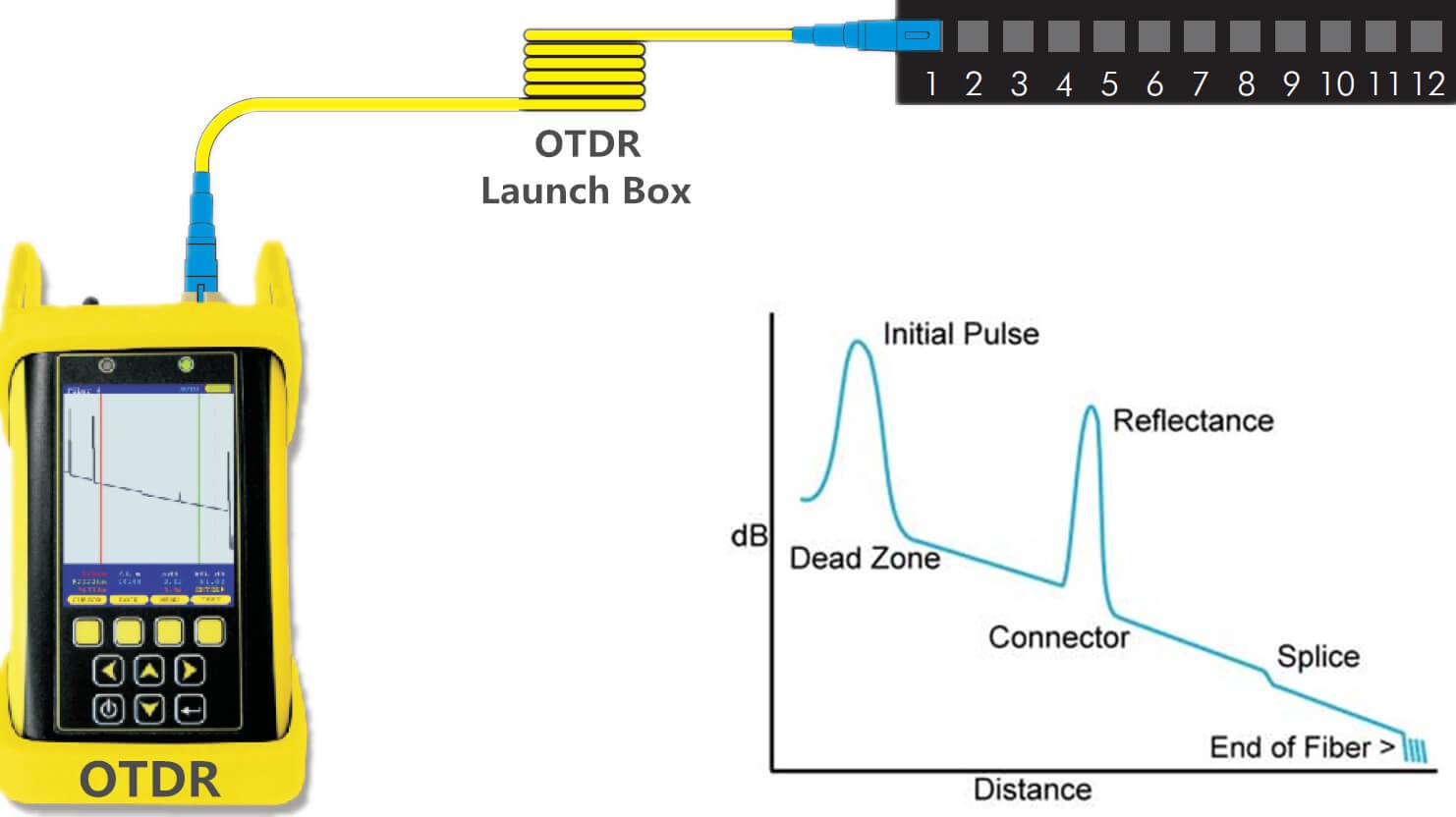

   OTDR test



   Fiber line monitoring

Certificates

ISO9001

CE

CPR

ROHS
