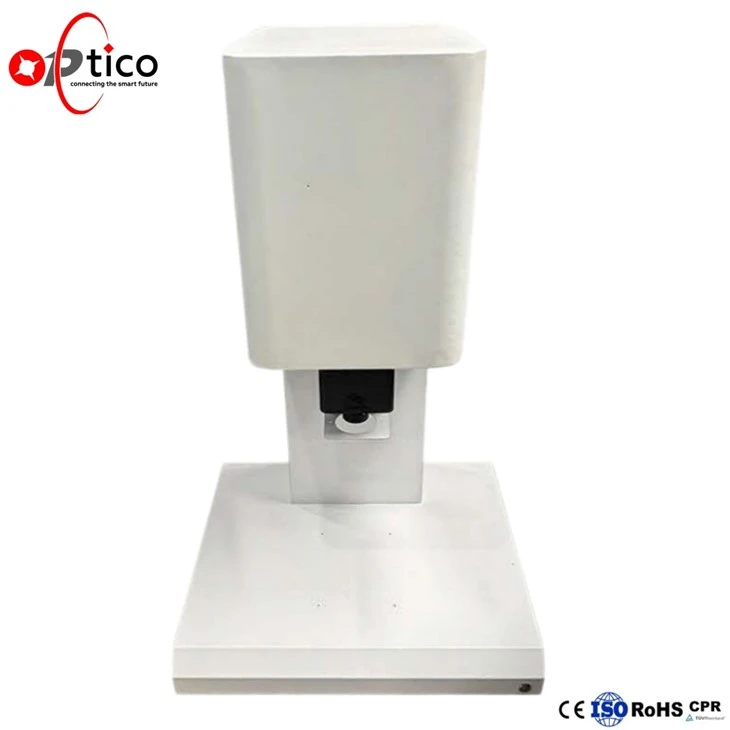

Fiber Sequence Detector
Automatic fiber sequence verification
0.2s fast inspection cycle
Visual and voice indication of misaligned fiber positions
Fiber Sequence Detector
In the production of MPO fiber optic ribbon cables, it is necessary to inspect the fiber sequence. Manual judgment often leads to misjudgment or missed inspection due to eye fatigue. The fiber sequence detector uses intelligent algorithms to compare and determine if it meets the preset standards. It accurately and quickly automatically identifies the color sequence of the fiber optic ribbon, ensuring the quality of the fiber optic ribbon, reducing the labor intensity of operators, and improving production efficiency. Its software is easy to operate, allowing errors in wiring to be detected and reminded at the production front end, preventing defective products with misalignment from flowing out, and significantly reducing subsequent polarity issues.
This fiber sequence detector uses machine vision to automatically identify whether the arrangement order of multi-core optical fibers or wire harnesses is correct, preventing polarity or wiring errors. It is commonly used in optical communication production and automotive wire harness assembly.
Core Features
● 0.2s fast inspection cycle
● Automatic fiber sequence verification
● Visual and voice indication of misaligned fiber positions
● External trigger-free operation
● Test task storage and recall
Application scenarios
-- MPO Fiber Production Lines:Sequence quality sampling or full-scale batch inspection.
-- Fiber Connector Assembly Lines:Sequence verification before and after assembly processes.
-- Quality Assurance Departments:Incoming material inspection and outgoing shipment verification.
-- R&D Prototyping:Small-batch sample validation during development phases.
|
Item specifications |
|
|
Model |
JL-FS500-GMP |
|
Detection Mode |
Single-sided/Double-sided |
|
Inspection Items |
MPO fiber color sequence errors(misalignment,reversal,dislocation) |
|
Inspection Items |
MPO fiber color sequence errors(misalignment,reversal,dislocation) |
|
Max Inspection Size |
Compatible with standard MPO connectors |
|
Resolution |
Optical microscope imaging/digital image processing |
|
Inspection Efficiency |
Single test:0.2 seconds |
|
Continuous mode |
real-time |
|
Inspection Accuracy |
High-precision detection,eliminates human |
|
False Miss Rate |
<1% |
|
False Alarm Rate |
<5% |
|
Extended Functions |
Standard sample comparison,automatic brightness calibration, precision chuck positioning |
|
Detection Principle |
Optical microscopicimaging+image comparison algorithm |
|
Light Source System |
High-brightness LED(adjustable,lifespan>20,000 hours) |
|
Camera |
Industrial-grade digital camera |
|
Operating System |
Windows 7/Windows 10(64-bit) |
|
Power Requirement |
220V,24V |
|
Instrument Dimensions |
120W×370H×210D(mm) |
|
Weight |
2.5kg |
More Technical Details:
Imaging Method:High-magnification optical microscopy with digital imaging.
Judgment Basis:Pixel-level comparison with a standard reference image;erroneous positions are distinctly marked.
Light Source Control:Automatic brightness adjustment to maintain optimal image quality.
Chuck Design:Precision-engineered chuck for accurate and repeatable positioning.
Data Storage:Supports saving of test configurations for convenient reuse across different tasks.
Compatible Material States:With adhesive/without adhesive/with colorless transparent film.
